Diodes IncorporatedUnited States

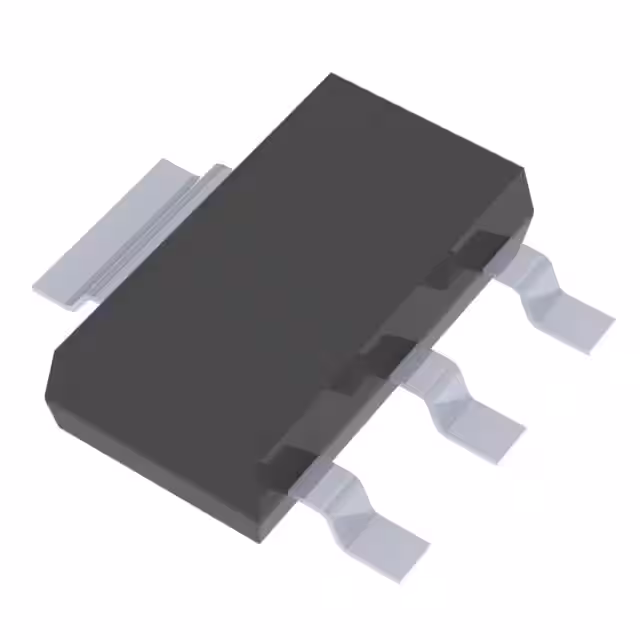

PWR LOW SAT TRANSISTOR SOT223 T&
All alternatives
View full reportTechnical parameters
Key specs
TypePNP
Collector-emitter voltage35 V
Collector current3 AMax
DC current gain30010mA
Power1.2 WMax
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 100nA |
| Current - Collector (Ic) (Max) | 3 A |
| Power - Max | 1.2 W |
| Voltage - Collector Emitter Breakdown (Max) | 35 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 300 @ 10mA, 2V |
| Frequency - Transition | 100MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223-3 |
| Other | |
| Base Product Number | FZT789A |
| Mfr | Diodes Incorporated |
| Product Status | Active |
| Series | - |
| Transistor Type | PNP |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 100mA, 3A |
