ODUGermany

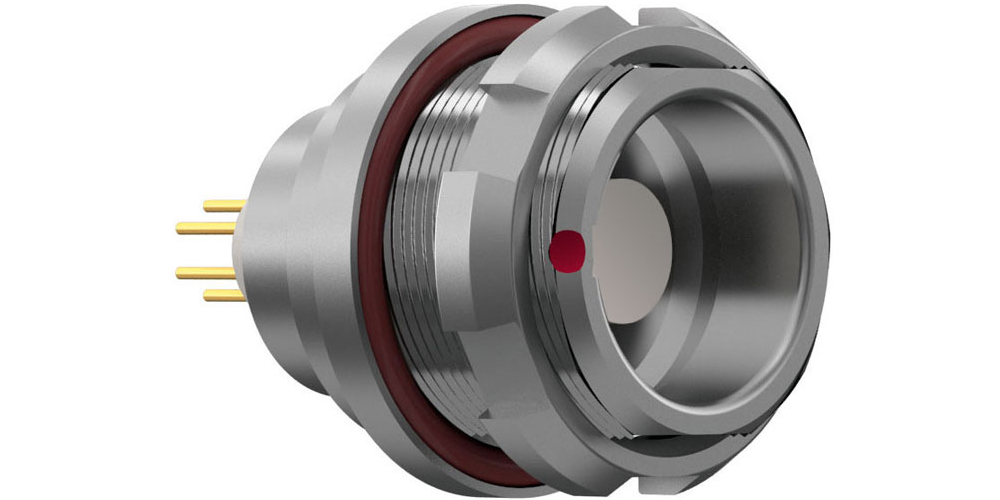

ODU MINI-SNAP RECEPT, STY 3, SZ
All alternatives
View full reportTechnical parameters
Key specs

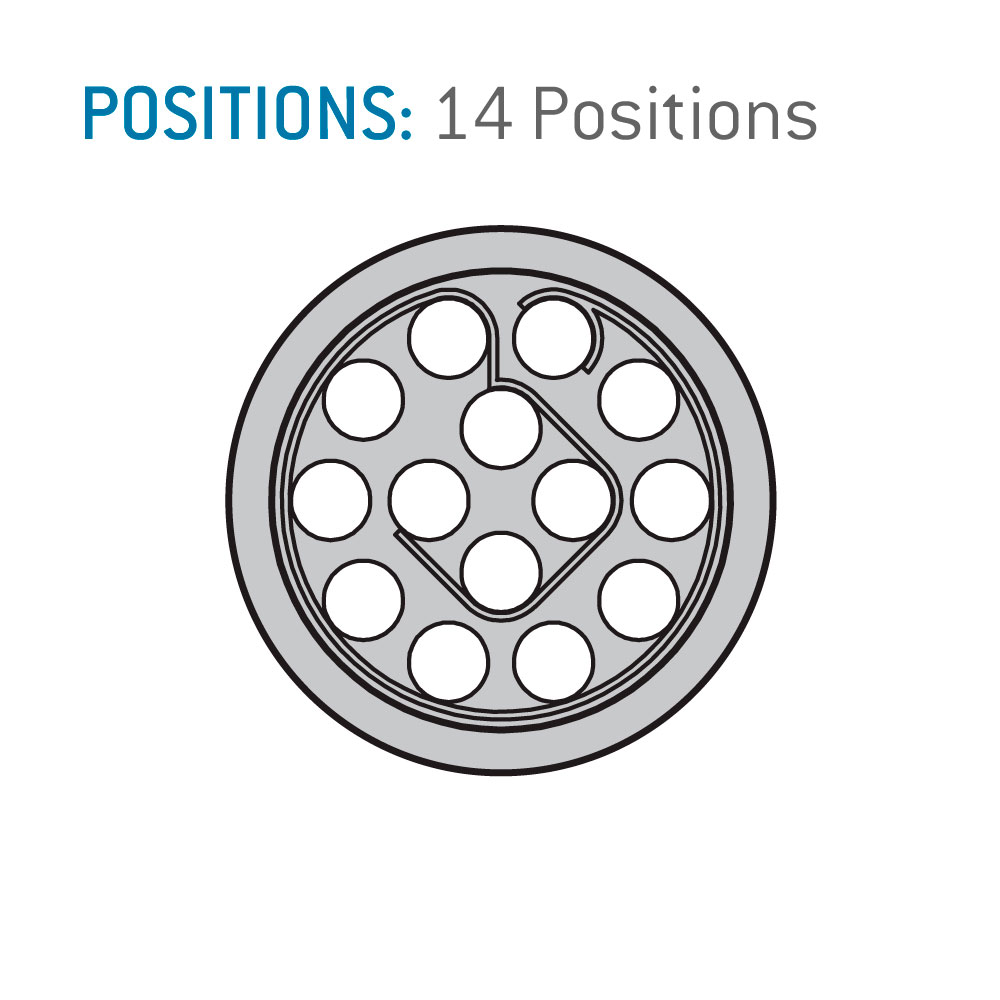

Positions14
GenderFemale
Current rating4 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 4A |
| Voltage Rating | 200V |
| Environment and package | |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Panel Mount, Through Hole |
| Operating Temperature | -40°C~120°C |
| Package | Bulk |
| Shell Size - Insert | 1 |
| Shell Size, MIL | - |
| Other | |
| Applications | Industrial, Medical, Military, Testing Equipment & Measurement |
| Backshell Material, Plating | - |
| Base Product Number | G31K0C-P |
| Cable Opening | - |
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Material | Brass |
| Fastening Type | Push-Pull |
| Features | Ground |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyetheretherketone (PEEK) |
| Material Flammability Rating | - |
| Mfr | ODU |
| Number of Positions | 14 |

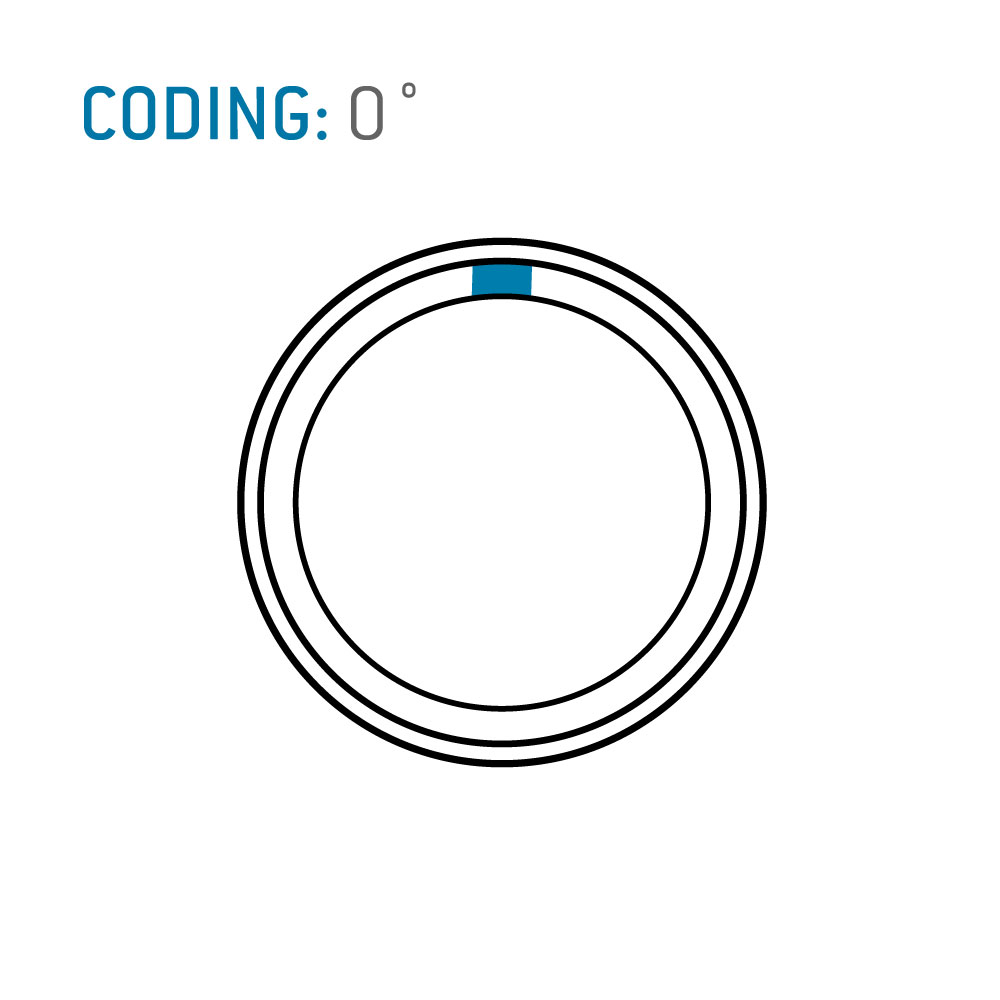

| Orientation | 0 |
| Primary Material | Metal |
| Product Status | Active |
| Series | ODU MINI-SNAP® K |
| Shell Finish | Chrome over Nickel |
| Shell Material | Brass |
| Shielding | Shielded |
| Termination | Solder |
