CUI DevicesUnited States

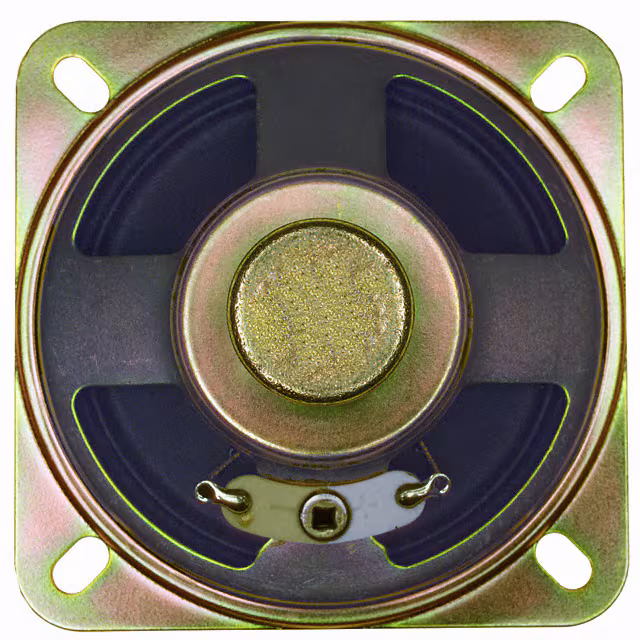

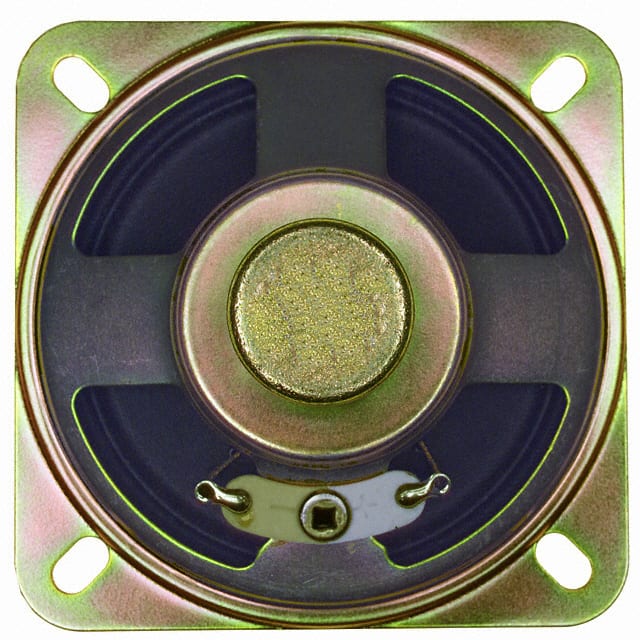

SPEAKER 8OHM 2W TOP PORT 92DB
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power - Max | 3 W |
| Power - Rated | 2 W |
| AC and DC characteristics | |
| Frequency Range | 200 Hz ~ 15 kHz |
| Frequency - Self Resonant | 200Hz |
| Impedance | 8 Ohms |
| Environment and package | |
| Height - Seated (Max) | 1.417" (36.00mm) |
| Package | Box |
| Size / Dimension | 4.055" L x 4.055" W (103.00mm x 103.00mm) |
| Other | |
| Efficiency - dBA | 92.00 |
| Efficiency - Testing | 1W/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Ingress Protection | - |
| Material - Cone | Paper |
| Material - Magnet | Alnico (AlNiCo) |
| Mfr | CUI Devices |
| Port Location | Top |
| Product Status | Active |
| Ratings | - |
| Series | GA |
| Shape | Round, Square Frame |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | General Purpose |
