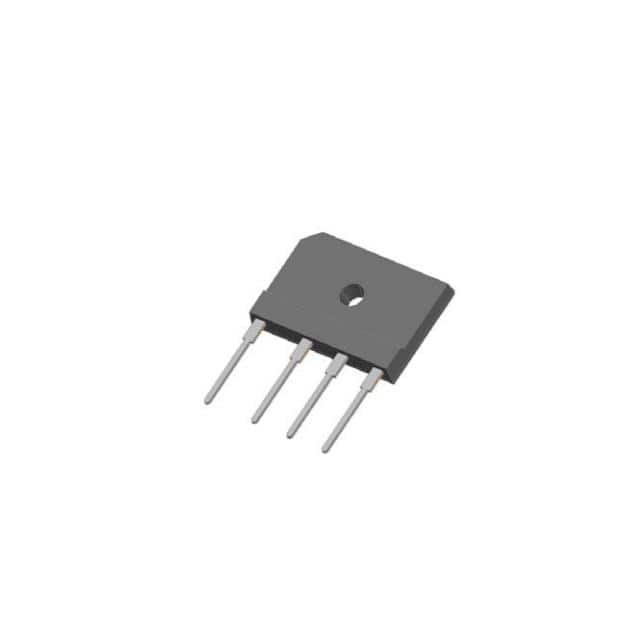

GBJ3510
Yangjie TechnologyChina

GBJ3510

ActiveDiodes - Bridge Rectifiers

6KBJ 1000V 35.0A Diodes Bridge

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Reverse voltage1 kV
Average rectified current35 A
Forward voltage1.05 VMax · 17.5 A
TypeStandard
Power
Current - Average Rectified (Io)35 A
Current - Reverse Leakage @ Vr10 µA @ 1000 V
Voltage - Forward (Vf) (Max) @ If1.05 V @ 17.5 A
Voltage - Peak Reverse (Max)1 kV
Environment and package
Mounting TypeThrough Hole
Operating Temperature-55°C~150°C(TJ)
PackageTube
Package / Case4-SIP, GBJ
Supplier Device PackageGBJ
Other
Diode TypeSingle Phase
MfrYangjie Technology
Product StatusActive
SeriesGBJ
TechnologyStandard
