View full reportTechnical parameters
| Environment and package | |
|---|---|

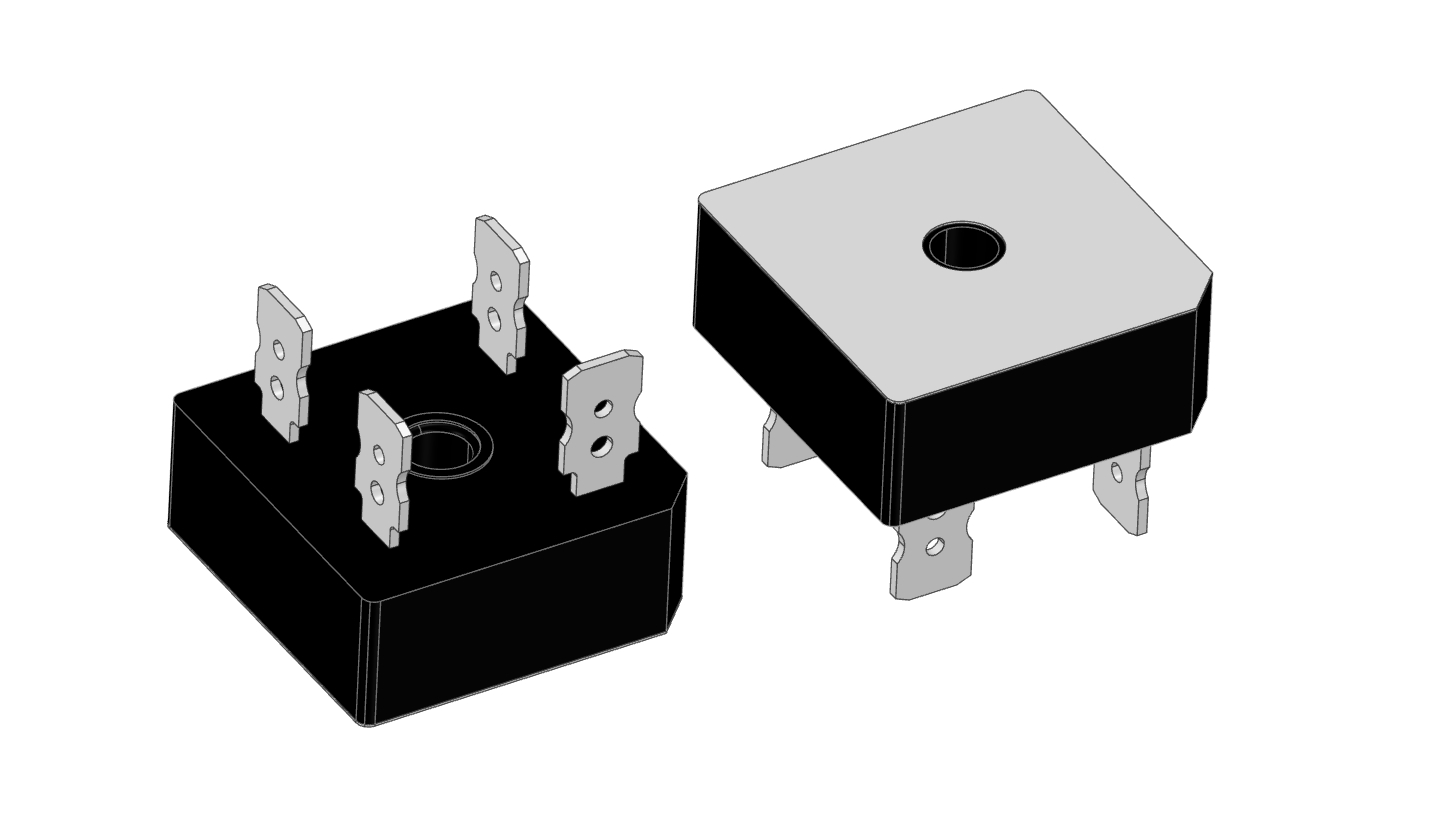

| Package | GBPC |
| Other | |
| IFSM_Max(A) | 300 |
| Io_Max(A) | 15 |
| IR@25℃IR(uA) | 10 |
| Rated lo(A) | 7.5 |
| Status | Active |
| Tj（℃） | -55～+150 |
| Trr_Max(ns) | / |
| VF_Max(V) | 1.1 |
| VRM (V) | 200 |
Documents
DatasheetDatasheet · 251.3 KB · 2026-09-23EnvironmentalEnvironmental · 8.9 MB · 2026-09-23EnvironmentalEnvironmental · 8.9 MB · 2026-09-23EnvironmentalEnvironmental · 1.5 MB · 2026-09-23EnvironmentalEnvironmental · 1.4 MB · 2026-09-23Package DrawingPackage Drawing · 117.2 KB · 2026-09-23
