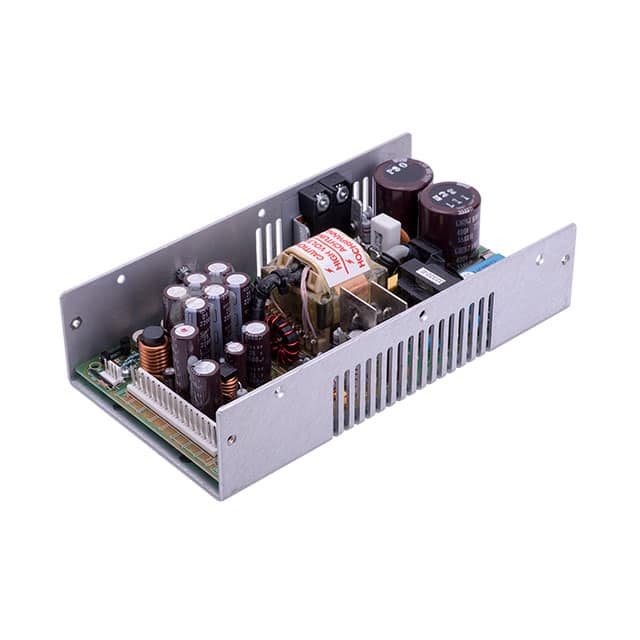

AC/DC CNVRTR 5V 24V +/-12V 100W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage85 ~ 264 V
Output voltage5 V
Output current16 AMax
Power100 WMax
Outputs4
| Power | |
|---|---|
| Current - Output 1 | 16 A |
| Current - Output 2 | 3.5 A |
| Current - Output 3 | 1.2 A |
| Current - Output 4 | 1.2 A |
| Power (Watts) | 100W (130W Forced Air) |
| Voltage - Input | 85 ~ 264 VAC |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 24V |
| Voltage - Output 3 | -12V |
| Voltage - Output 4 | 12V |
| Voltage - Output 6 | - |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | 0°C~50°C |
| Package | Bulk |
| Size / Dimension | 8.50" L x 4.50" W x 2.00" H (215.9mm x 114.3mm x 50.8mm) |
| Other | |
| Applications | Medical |
| Approval Agency | CE |
| Efficiency | 70% |
| Features | Adjustable Output, Remote Sense, Universal Input |
| Mfr | SL Power Electronics Manufacture of Condor/Ault Brands |
| Minimum Load Required | Yes |
| Number of Outputs | 4 |
| Product Status | Obsolete |
| Series | GPM130 (130W) |
| Type | Open Frame |
