View full reportTechnical parameters
| Power | |
|---|---|
| Power - Max | 2 W |
| AC and DC characteristics | |
| Frequency (Center/Band) | 1.575GHz, 2.4GHz, 5.5GHz |
| Frequency Group | Wide Band |
| Frequency Range | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz |
| Gain | 1.8dBi |
| Environment and package | |
| Height (Max) | 0.020" (0.50mm) |
| Mounting Type | Surface Mount |
| Other | |

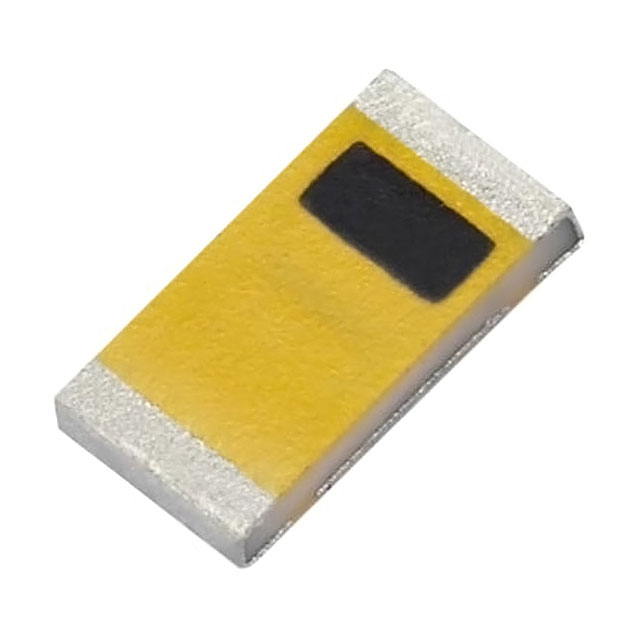

| Antenna Type | Chip |
| Applications | Bluetooth, GPS, Wi-Fi, WLAN, Zigbee™ |
| Features | - |
| Ingress Protection | - |
| Manufacturer | Taoglas Limited |
| Number of Bands | 3 |
| Packaging | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Part Status | Not For New Designs |
| Return Loss | -10dB |
| RF Family/Standard | 802.15.4, Bluetooth, Navigation, WiFi |
| Series | - |
| Termination | Solder |
| VSWR | - |
