Signal TransformerUnited States

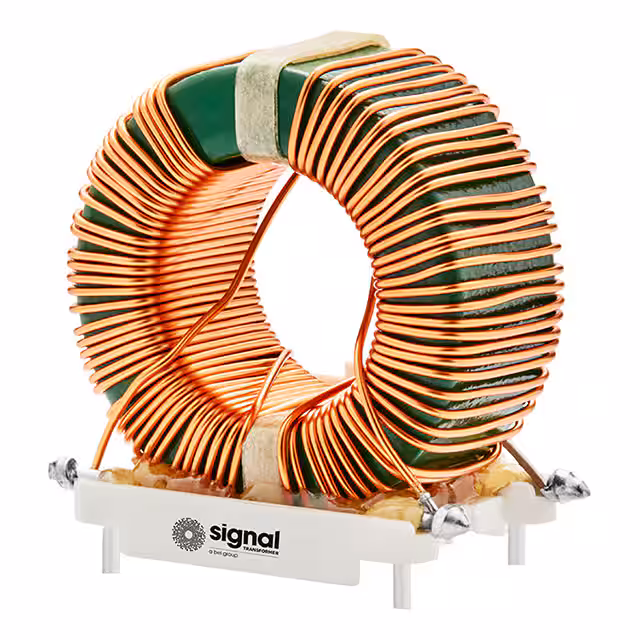

CMC 12MH 4A 2LN TH
All alternatives
View full reportTechnical parameters
Key specs
Number of lines2
Current rating4 AMax
DC resistance110 mΩMax
| Power | |
|---|---|
| Current Rating (Max) | 4A |
| Voltage Rating - AC | - |
| Voltage Rating - DC | - |
| AC and DC characteristics | |
| Inductance @ Frequency | 12 mH @ 1 kHz |
| Environment and package | |
| Height (Max) | 1.450" (36.83mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~105°C |
| Package | Tray |
| Package / Case | Vertical, 4 PC Pin |
| Size / Dimension | 1.350" L x 0.600" W (34.29mm x 15.24mm) |
| Other | |
| Approval Agency | - |
| DC Resistance (DCR) (Max) | 110mOhm |
| Features | - |
| Filter Type | Power Line |
| Mfr | Signal Transformer |
| Number of Lines | 2 |
| Product Status | Active |
| Ratings | - |
| Series | HCTC |
