Signal TransformerUnited States

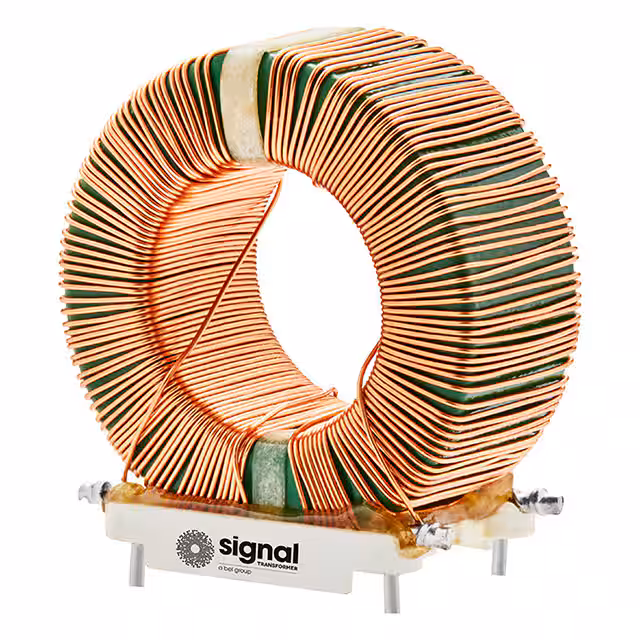

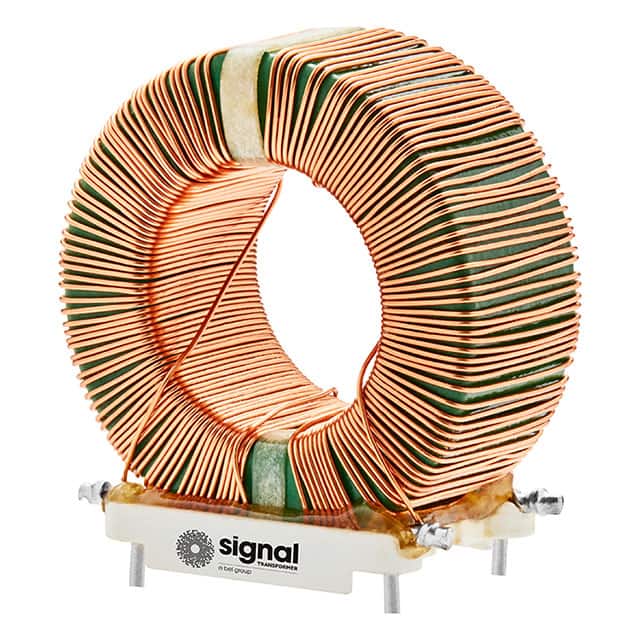

CMC 36MH 2.9A 2LN TH
All alternatives
View full reportTechnical parameters
Key specs
Number of lines2
Current rating2.9 AMax
DC resistance300 mΩMax
| Power | |
|---|---|
| Current Rating (Max) | 2.9A |
| Voltage Rating - AC | - |
| Voltage Rating - DC | - |
| AC and DC characteristics | |
| Inductance @ Frequency | 36 mH @ 1 kHz |
| Environment and package | |
| Height (Max) | 1.650" (41.91mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~105°C |
| Package | Tray |
| Package / Case | Vertical, 4 PC Pin |
| Size / Dimension | 1.550" L x 0.600" W (39.37mm x 15.24mm) |
| Other | |
| Approval Agency | - |
| DC Resistance (DCR) (Max) | 300mOhm |
| Features | - |
| Filter Type | Power Line |
| Mfr | Signal Transformer |
| Number of Lines | 2 |
| Product Status | Active |
| Ratings | - |
| Series | HCTC |
