Song Chuan(松川)China
High voltage DC load control.; High performance DC relay for photovoltaic power generation systems, energy storage system and xEV charging device, etc.; Complies with RoHS-Directive 2011/65/EU.
All alternatives
View full reportTechnical parameters
Key specs
Coil voltage12 ~ 24 V
| Power | |
|---|---|
| Coil voltage | DC | 12~24V |
| Max. Allowable Contact current(A) | 120 A |
| Power consumption | DC | 6W (Holding:1.5W) |
| Other | |
| 1. | HD024 | — | Basic series designation |
| 2. | Blank | — | Standard type |

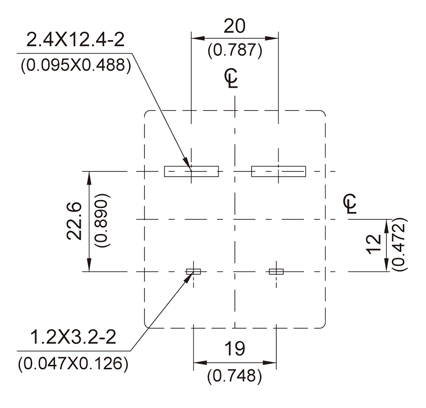

| 3. | P1 | — | PCB terminal |
| 4. | 1A | — | Form A, single-pole, double-make (SPDM) |
| 5. | H | — | Contact material Ag alloy |
| 6. | F | — | Class F |
| 7. | C | — | Flux tight |
| 8. | □ | — | Coil voltage (please refer to the coil rating data for the availability) |
| AC | —— |
| Contact and coil | 4000VAC |
| Contact circuits | —— |
| Contact configuration | 1A |
| Contact rating | Resistive load | 120A 400VDC |
| Dielectric strength | Open contact | 2000VAC |
| Electrical(Min.) | 5×102 |
| Life expectancy | Mechanical(Min.) | 5×105 |
| Outline (L×W×H) mm | 50×41.5×46.5 |
