Nexperia USA Inc.Netherlands

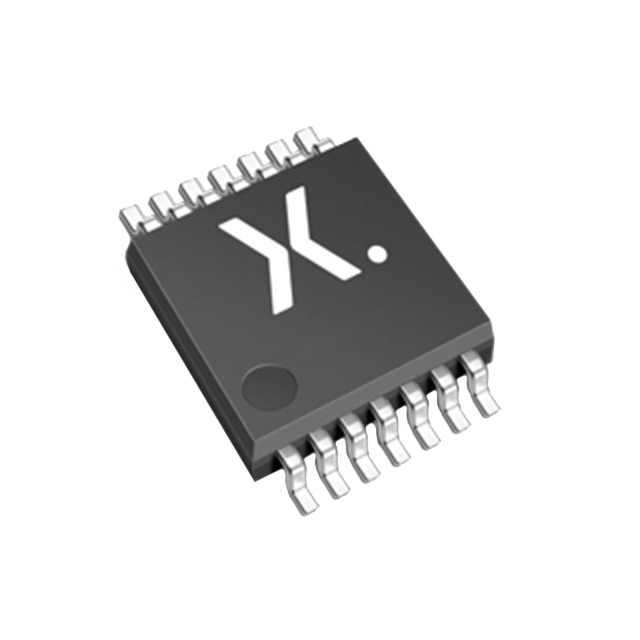

IC INVERTER 6CH 1-INP 14TSSOP
All alternatives
View full reportTechnical parameters
Key specs
Logic typeInverter
Elements6
Inputs1
Supply voltage3 ~ 15 V
Propagation delay60 nsMax · 15V
| Power | |
|---|---|
| Current - Output High, Low | 3.4mA, 3.4mA |
| Current - Quiescent (Max) | 4 µA |
| Voltage - Supply | 3V ~ 15V |
| AC and DC characteristics | |
| Max Propagation Delay @ V, Max CL | 60ns @ 15V, 50pF |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 14-TSSOP |
| Other | |
| Base Product Number | HEF40106 |
| Features | Schmitt Trigger |
| Input Logic Level - High | 3.5V ~ 11V |
| Input Logic Level - Low | 1.5V ~ 4V |
| Logic Type | Inverter |
| Mfr | Nexperia USA Inc. |
| Number of Circuits | 6 |
| Number of Inputs | 1 |
| Product Status | Active |
| Series | 4000B |
