Nexperia USA Inc.Netherlands

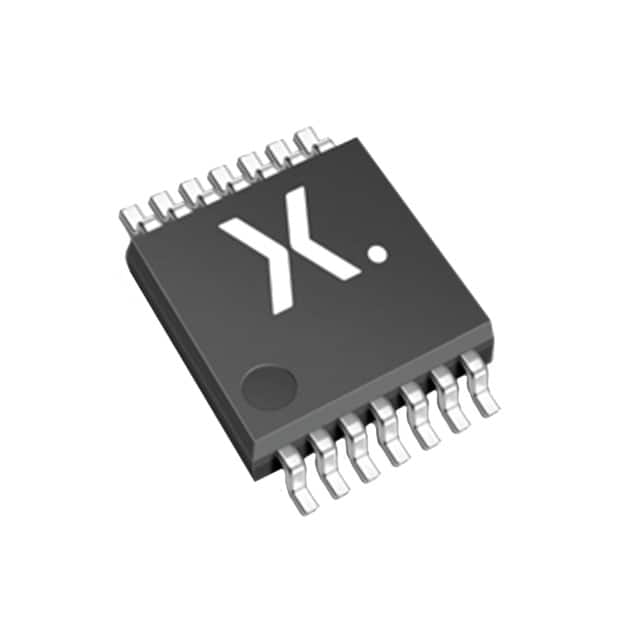

IC FF D-TYPE DUAL 1BIT 14TSSOP
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output High, Low | 3.4mA, 3.4mA |
| Current - Quiescent (Iq) | 4 µA |
| Voltage - Supply | 3V ~ 15V |
| AC and DC characteristics | |
| Clock Frequency | 40 MHz |
| Max Propagation Delay @ V, Max CL | 60ns @ 15V, 50pF |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C(TA) |
| Package | Tube |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 14-TSSOP |
| Other | |
| Base Product Number | HEF4013 |
| Function | Set(Preset) and Reset |
| Input Capacitance | 7.5 pF |
| Mfr | Nexperia USA Inc. |
| Number of Bits per Element | 1 |
| Number of Elements | 2 |
| Output Type | Complementary |
| Product Status | Obsolete |
| Series | 4000B |
| Trigger Type | Positive Edge |
| Type | D-Type |
