Analog Devices Inc.United States

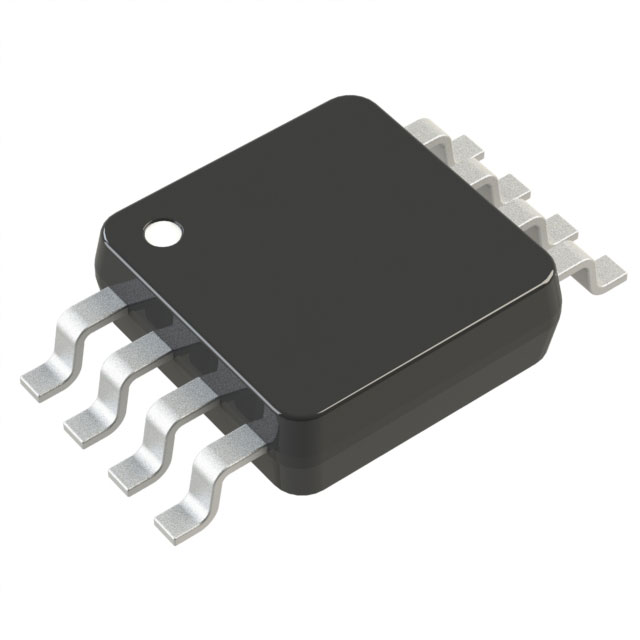

IC RF SWITCH SPDT 8MSOP
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Supply | - |
| AC and DC characteristics | |
| Frequency Range | 0Hz ~ 3.5GHz |
| Impedance | 50Ohm |
| Test Frequency | 3.5GHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |

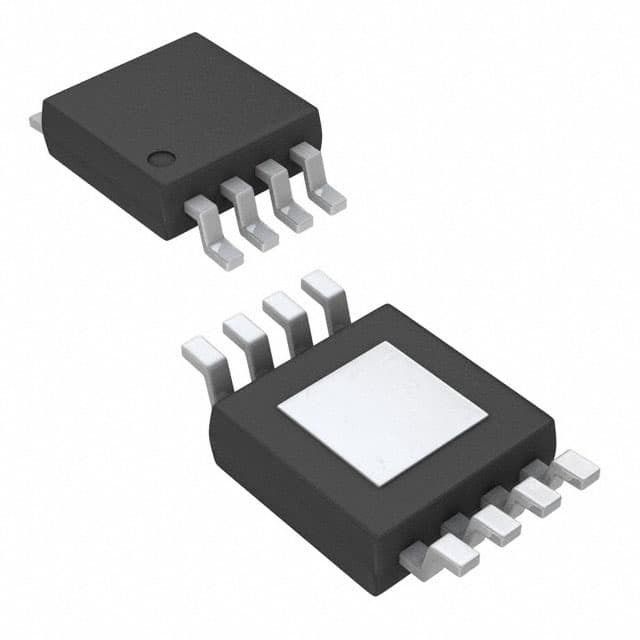

| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 8-MSOP-EP |
| Other | |
| Circuit | SPDT |
| Features | - |
| IIP3 | 48dBm |
| Insertion Loss | 0.7dB |
| Isolation | 33dB |
| Mfr | Analog Devices Inc. |
| P1dB | 24dBm |
| Product Status | Obsolete |
| RF Type | General Purpose |
| Series | - |
| Topology | Absorptive |
