HittiteUnited States

HMC412MS8G

RF AmplifiersMSOP8G SMT Package

MIXER DBL BAL 9-15GHZ 8DB LOSS MSOP8

HMC412MS8G is a 9-15 GHz passive double balanced mixer with 8 dB typical conversion loss and 8 dB noise figure, in MSOP8G package, requiring no external components or bias.Checked against the datasheet

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Datasheet-verified parameters

18 items
ParameterValue and test conditionsSource
PackageMSOP8G SMT Package
Operating Temperature-55 to +85 °C
RoHSRoHS√ (E) EARTH FRIENDLY
Frequency Range, RF & LO9.0 - 15.0 GHz
Frequency Range, IFDC - 2.5 GHz
Conversion LossTyp 8 dB, Max 11 dB (IF = 1.45 GHz, LO = +13 dBm)
Noise Figure (SSB)Typ 8 dB, Max 11 dB (IF = 1.45 GHz, LO = +13 dBm)
LO to RF IsolationMin 30 dB, Typ 40 - 50 dB (IF = 1.45 GHz, LO = +13 dBm)
LO to IF IsolationMin 33 dB, Typ 40 - 50 dB (IF = 1.45 GHz, LO = +13 dBm)
RF to IF IsolationMin 8 dB, Typ 17 dB (IF = 1.45 GHz, LO = +13 dBm)
IP3 (Input)Min 14 dBm, Typ 17 dBm (IF = 1.45 GHz, LO = +13 dBm)
1 dB Compression (Input)Min 7 dBm, Typ 9.5 dBm (IF = 1.45 GHz, LO = +13 dBm)
RF / IF Input Absolute Maximum Rating+27 dBm (Vdd = +3V)
LO Drive Absolute Maximum Rating+27 dBm (Vdd = +3V)
IF DC Current Absolute Maximum Rating±4 mA
Storage Temperature-65 to +150 °C
ESD Sensitivity (HBM)Class 1A
Recommended LO Drive Level+9 dBm to +13 dBm
All parameters (8)ExpandCollapse
AC and DC characteristics
Frequency Range, IFDC - 2.5 GHz
Frequency Range, RF & LO9.0 - 15.0 GHz
Noise Figure (SSB)8 dB (Typ)
Environment and package
Operating Temperature-55 to +85 °C
PackageMSOP8G SMT Package
Other
1 dB Compression (Input)9.5 dBm (Typ)
Conversion Loss8 dB (Typ)
IP3 (Input)17 dBm (Typ)

Pinout and package

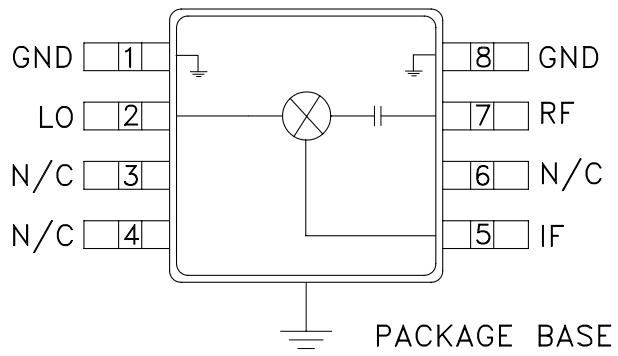

Functional Diagram
Functional Diagram

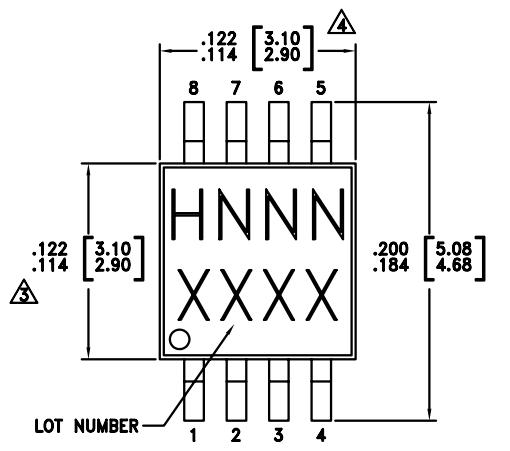

Package: MSOP8G SMT Package
PinNameFunctionSource
2LO: This pin is AC coupled and matched to 50 Ohms.
5IF: IF Port, DC coupled. For applications not requiring operation to DC, this port should be DC blocked externally using a series capacitor. For operation to DC, this pin must not source/sink more than 4mA of current.
7RF: This pin is AC coupled and matched to 50 Ohms.
1, 8GND: Ground, Pin must connect to RF ground.
3, 4, 6N/C: Not Connected.

Documents

DatasheetDatasheet · 393.4 KB · 2026-10-27
