Mornsun America, LLCChina

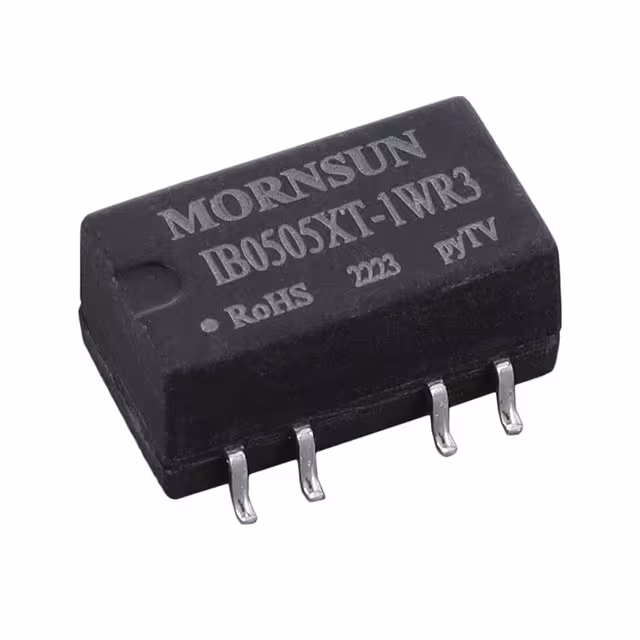

DC-DC ISOLATED 1 W 4.75~5.25V
All alternatives
View full reportTechnical parameters
Key specs
Input voltage4.75 ~ 5.25 V
Output voltage5 V
Output current200 mAMax
Power1 WMax
IsolationIsolated
| Power | |
|---|---|
| Current - Output (Max) | 200mA |
| Power (Watts) | 1 W |
| Voltage - Input (Max) | 5.25V |
| Voltage - Input (Min) | 4.75V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C(WithDerating) |
| Package | Tube |
| Package / Case | 10-SMD Module, 6 Leads |
| Size / Dimension | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm) |
| Supplier Device Package | - |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | - |
| Control Features | - |
| Efficiency | 69% |
| Features | - |
| Mfr | Mornsun America, LLC |
| Number of Outputs | 1 |
| Product Status | Active |
| Series | IB05_XT-1WR3 |
| Standard Number | 62368-1 |
| Type | Isolated Module |
