TDK InvenSenseJapan

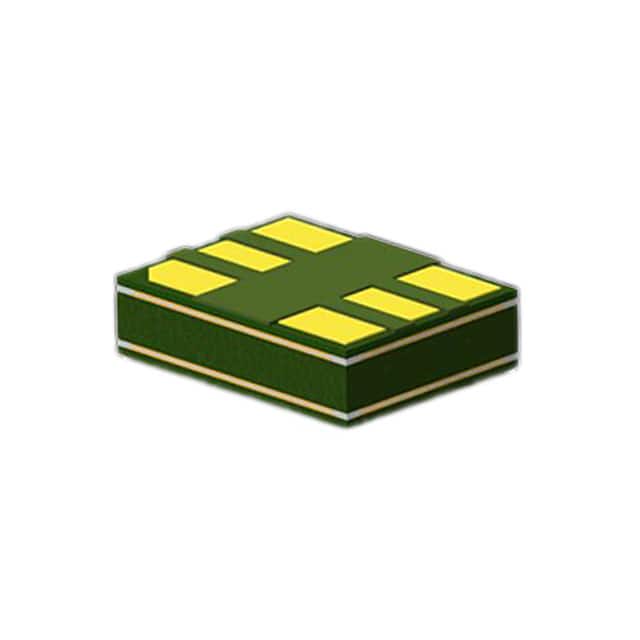

MICROPHONE MEMS ANALOG OMNI
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Supply | 250 µA |
| Voltage Range | 1.5 V ~ 3.63 V |
| AC and DC characteristics | |
| Frequency Range | 60 Hz ~ 20 kHz |
| Impedance | 350 Ohms |
| Environment and package | |
| Height (Max) | 0.043" (1.10mm) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Size / Dimension | 0.138" L x 0.104" W (3.50mm x 2.65mm) |
| Other | |
| Direction | Omnidirectional |
| Mfr | TDK InvenSense |
| Output Type | Analog |
| Port Location | Top |
| Product Status | Obsolete |
| Sensitivity | -38db ±1dB |
| Series | - |
| Shape | Rectangular |
| S/N Ratio | 65dB |
| Termination | Solder Pads |
| Type | MEMS (Silicon) |
Documents
No documents are linked to this part yet.
