NVE Corp/Isolation ProductsUnited States
DGTL ISO 2500VRMS 5CH GP 16SOIC
All alternatives
View full reportTechnical parameters
Key specs
Channels5
Isolation voltage2.5 kV
Data rate110 MbpsMax
Supply voltage3 ~ 5.5 V
| Power | |
|---|---|
| Channel Type | Unidirectional |
| Isolated Power | No |
| Number of Channels | 5 |
| Voltage - Isolation | 2500Vrms |
| Voltage - Supply | 3V ~ 5.5V |
| AC and DC characteristics | |
| Propagation Delay tpLH / tpHL (Max) | 15ns, 15ns |
| Pulse Width Distortion (Max) | 3ns |
| Rise / Fall Time (Typ) | 1ns, 1ns |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tube |

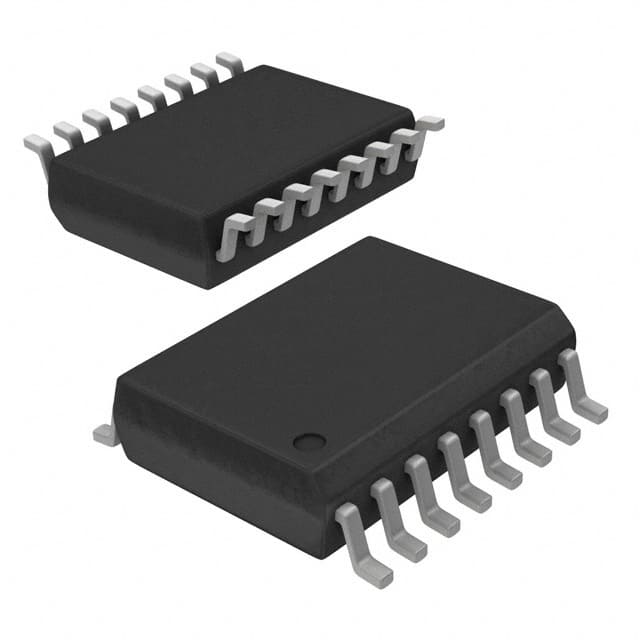

| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Other | |
| Common Mode Transient Immunity (Min) | 30kV/µs |
| Data Rate | 110Mbps |

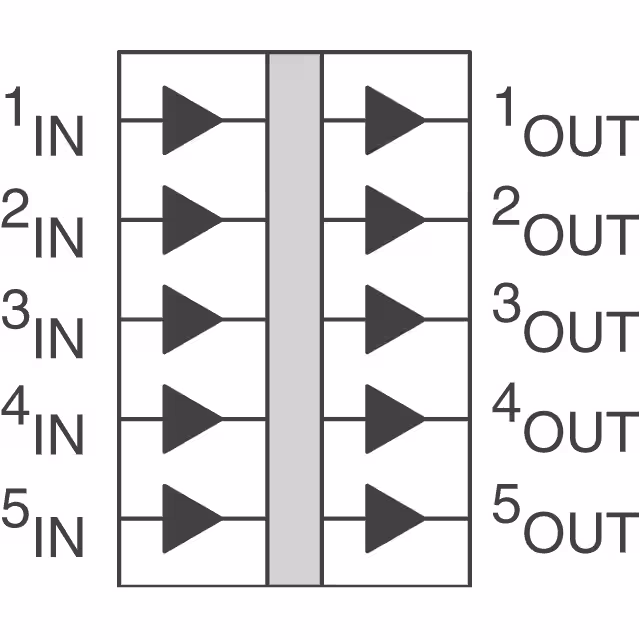

| Inputs - Side 1/Side 2 | 5/0 |
| Mfr | NVE Corp/Isolation Products |
| Product Status | Active |
| Series | IsoLoop® |
| Technology | GMR (Giant Magnetoresistive) |
| Type | General Purpose |
