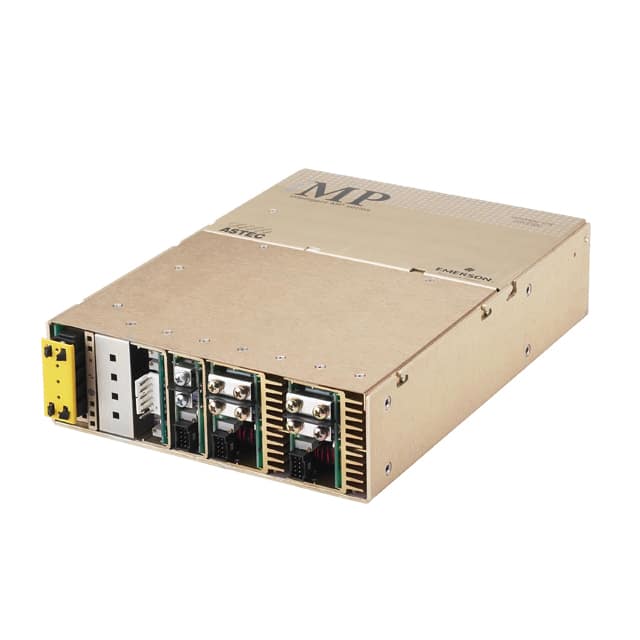

IMP4-3R-00-A
Artesyn Embedded PowerUnited States

IMP4-3R-00-A

ObsoleteAC DC Converters

AC/DC CONVERTER 28V 1100W

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Input voltage85 ~ 264 V
Output voltage28 V
Output current26.8 AMax
Power1.1 kWMax
Outputs1
Power
Current - Output 126.8 A
Power (Watts)1100W
Voltage - Input85 ~ 264 VAC, 120 ~ 300 VDC
Voltage - Isolation2 kV
Voltage - Output 128V
Voltage - Output 2-
Voltage - Output 3-
Voltage - Output 4-
Voltage - Output 5-
Voltage - Output 6-
Environment and package
Mounting TypeChassis Mount
Operating Temperature-40°C~70°C(WithDerating)
PackageBulk
Size / Dimension10.00" L x 5.00" W x 2.50" H (254.0mm x 127.0mm x 63.5mm)
Other
ApplicationsITE (Commercial), Medical
Approval AgencyCB, CE, CSA, UL
Efficiency85%
FeaturesAdjustable Output, I²C Interface, PFC, PMBus™, Remote Sense, Universal Input
MfrArtesyn Embedded Power
Minimum Load RequiredNo
Number of Outputs1
Product StatusObsolete
SeriesiMP® (1158W)
TypeEnclosed

Documents

No documents are linked to this part yet.
