Infineon TechnologiesGermany

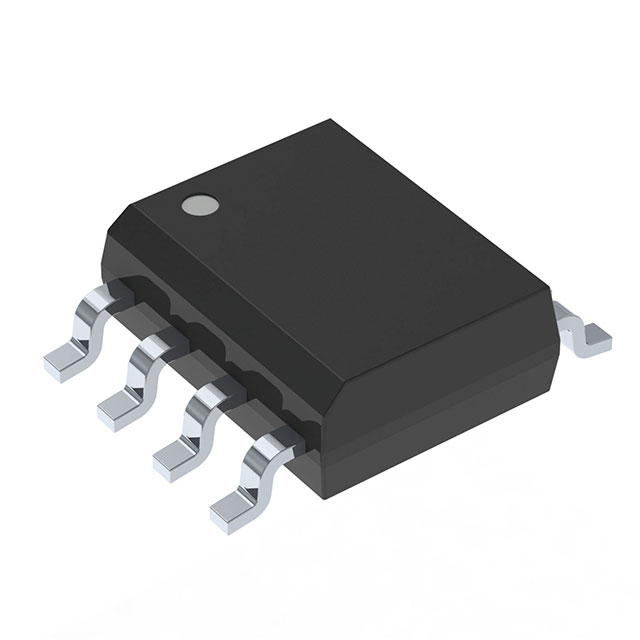

MOSFET P-CH 30V 10A 8SO
All alternatives
View full reportTechnical parameters
Key specs
ChannelP-channel
Drain-source voltage30 V
Continuous drain current10 A
On-resistance20 mΩMax · 5.6A
Gate threshold voltage1 VMax · 250μA
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 10A (Ta) |
| Drain to Source Voltage (Vdss) | 30 V |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Power Dissipation (Max) | 2.5W (Ta) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO |
| Other | |
| Base Product Number | IRF7416 |
| FET Feature | - |
| FET Type | P-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 92 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1700 pF @ 25 V |
| Mfr | Infineon Technologies |
| Packaging | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Part Status | Active |
| Rds On (Max) @ Id, Vgs | 20mOhm @ 5.6A, 10V |
| Series | HEXFET® |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | ±20V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
