Infineon TechnologiesGermany

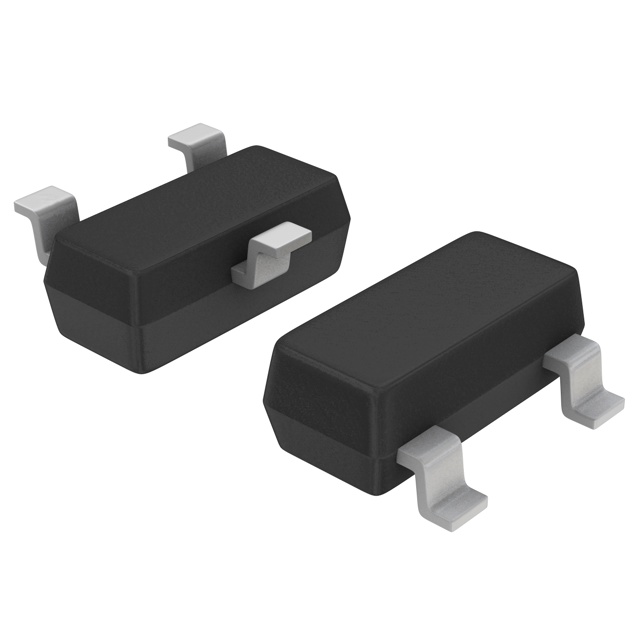

MOSFET N-CH 20V 1.2A SOT23-3
All alternatives
View full reportTechnical parameters
Key specs
ChannelN-channel
Drain-source voltage20 V
Continuous drain current1.2 A
On-resistance250 mΩMax · 930mA
Gate threshold voltage700 mVMax · 250μA (Min)
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 1.2A (Ta) |
| Drain to Source Voltage (Vdss) | 20 V |
| Drive Voltage (Max Rds On, Min Rds On) | 2.7V, 4.5V |
| Power Dissipation (Max) | 540mW (Ta) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) - |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | Micro3™/SOT-23 |
| Other | |
| FET Feature | - |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 3.9 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 110 pF @ 15 V |
| Mfr | Infineon Technologies |
| Product Status | Active |
| Rds On (Max) @ Id, Vgs | 250mOhm @ 930mA, 4.5V |
| Series | HEXFET® |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | ±12V |
| Vgs(th) (Max) @ Id | 700mV @ 250µA (Min) |
