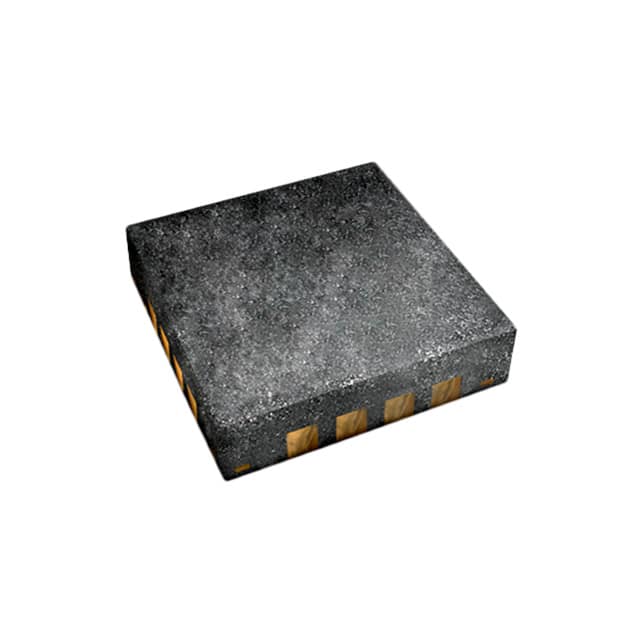

ITG-1010

3-AXIS GYROSCOPE; LOW POWER SOLU

All alternatives

Power
Current - Supply	3.2 mA
Voltage - Supply	1.71V ~ 3.6V
AC and DC characteristics
Bandwidth	16kHz
Environment and package
Operating Temperature	-40°C~85°C(TA)
Package	Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Package / Case	16-VFQFN Exposed Pad
Other
Axis	X (Pitch), Y (Roll), Z (Yaw)
Features	Adjustable Bandwidth, Selectable Scale, Temperature Sensor
Mfr	TDK InvenSense
Output Type	I²C, SPI
Product Status	Obsolete
Range °/s	±250, 500, 1000, 2000
Sensitivity (LSB/(°/s))	16.4 ~ 131
Sensitivity (mV/°/s)	-
Series	-
Type	Digital

No documents are linked to this part yet.
