Vishay DaleUnited States

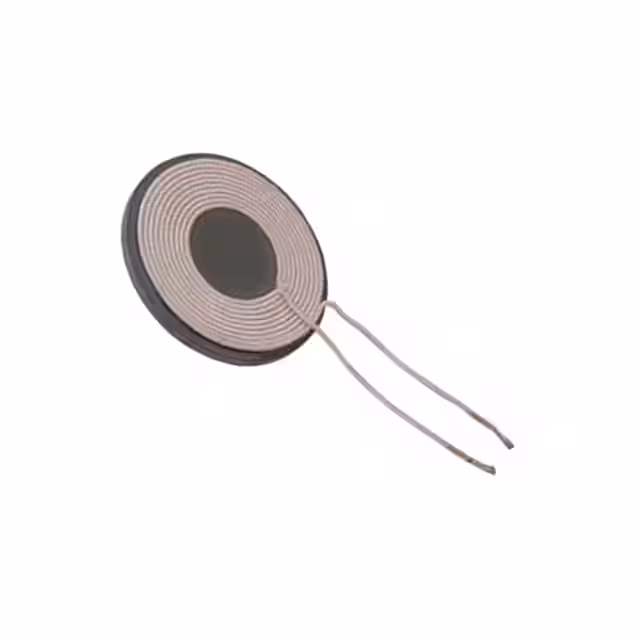

WIRELESS CHARGING COIL
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 7A |
| Current - Saturation (Isat) | 22A |
| AC and DC characteristics | |
| Frequency - Self Resonant | 22MHz |
| Environment and package | |
| Operating Temperature | -55°C~105°C |
| Package | Bulk |
| Size / Dimension | 1.85" Dia x 0.19" H (47.0mm x 4.9mm) |
| Other | |
| DC Resistance (DCR) | 38mOhm |
| Function | Transmitter |
| Inductance | 6.3µH |
| Mfr | Vishay Dale |
| Product Status | Obsolete |
| Q @ Freq | 190 @ 200kHz |
| Series | - |
| Tolerance | ±5% |
| Type | 1 Coil, 1 Layer |
