NXP USA Inc.Netherlands

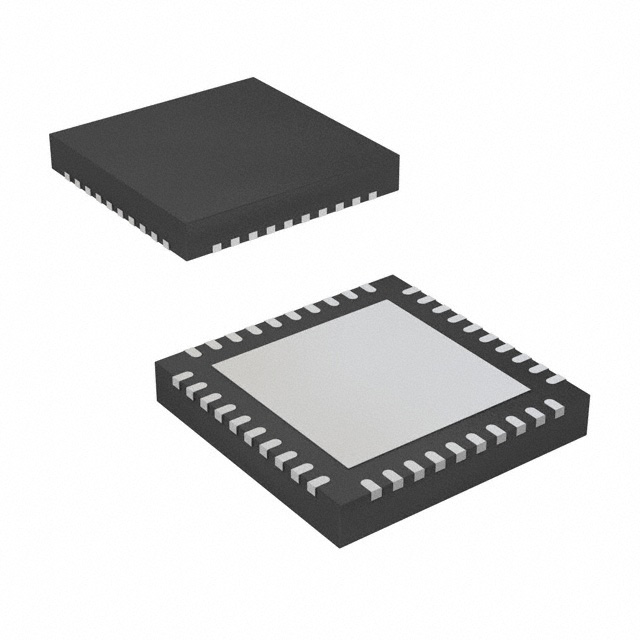

IC RF TXRX+MCU 802.15.4 40VFQFN
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Receiving | 16.5mA |
| Current - Transmitting | 15mA |
| Power - Output | 2.5dBm |
| Voltage - Supply | 2V ~ 3.6V |
| AC and DC characteristics | |
| Frequency | 2.4GHz |
| Environment and package | |
| Memory Size | 128kB ROM, 32kB RAM |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C |
| Package | Tape & Reel (TR) |
| Package / Case | 40-VFQFN Exposed Pad |
| Supplier Device Package | 40-HVQFN (6x6) |
| Other | |
| Base Product Number | JN514 |
| Data Rate (Max) | - |
| Mfr | NXP USA Inc. |
| Modulation | - |
| Product Status | Obsolete |
| Protocol | Zigbee® |
| RF Family/Standard | 802.15.4 |
| Sensitivity | -95dBm |
| Serial Interfaces | - |
| Series | - |
| Type | TxRx + MCU |
Documents
No documents are linked to this part yet.
