JN5169/001Z
NXP USA Inc.Netherlands

JN5169/001Z

ActiveRF Transceiver ICs

IC RF TXRX+MCU 802.15.4 40VFQFN

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Current - Receiving13mA ~ 15mA
Current - Transmitting14mA ~ 23.3mA
Power - Output10dBm
Voltage - Supply2V ~ 3.6V
AC and DC characteristics
Frequency2.4GHz
Environment and package
Memory Size512kB Flash, 4kB EEPROM, 32kB RAM
Mounting TypeSurface Mount
Operating Temperature-40°C~125°C
PackageTape & Reel (TR); Cut Tape (CT); Digi-Reel®

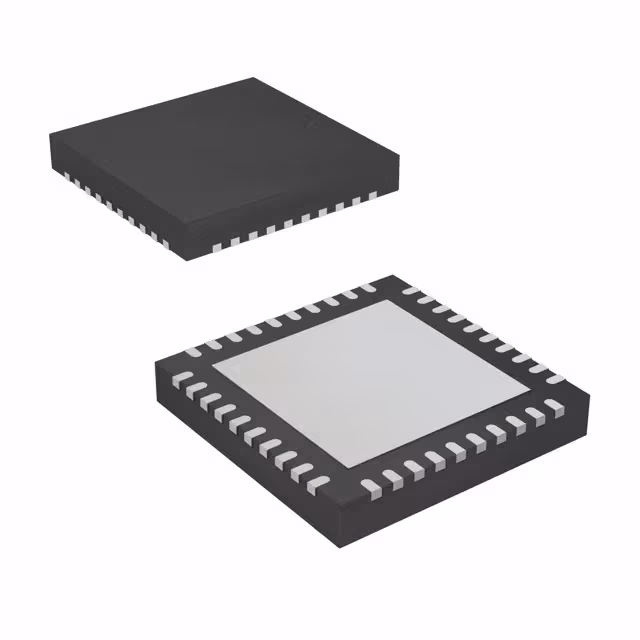

Package / Case40-VFQFN Exposed Pad
Supplier Device Package40-HVQFN (6x6)
Other
Base Product NumberJN5169
Data Rate (Max)400kbps
GPIO20
MfrNXP USA Inc.
ModulationO-QPSK
Product StatusActive
ProtocolZigbee®
RF Family/Standard802.15.4
Sensitivity-96.5dBm
Serial InterfacesI²C, JTAG, SPI, UART
Series-
TypeTxRx + MCU

Documents

No documents are linked to this part yet.
