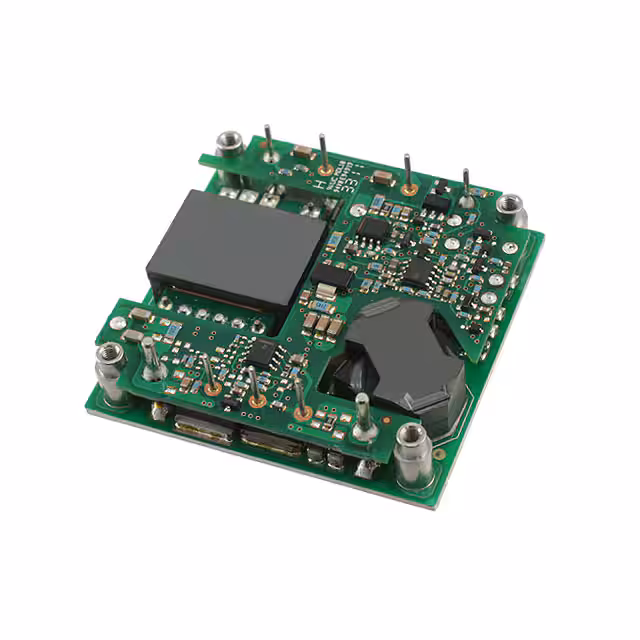

DC DC CONVERTER 28V 350W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage18 ~ 36 V
Output voltage28 V
Output current12.5 AMax
Power350 WMax
IsolationIsolated
| Power | |
|---|---|
| Current - Output (Max) | 12.5A |
| Power (Watts) | 350 W |
| Voltage - Input (Max) | 36V |
| Voltage - Input (Min) | 18V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 28V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~100°C |
| Package | Bulk |
| Package / Case | 9-DIP Module, 1/2 Brick |
| Size / Dimension | 2.39" L x 2.27" W x 0.50" H (60.7mm x 57.7mm x 12.7mm) |
| Other | |
| Applications | ITE (Commercial) |
| Control Features | Enable, Active Low |
| Efficiency | 91% |
| Features | Remote On/Off, OCP, OTP, OVP, UVLO |
| Mfr | ABB Power Electronics Inc. |
| Number of Outputs | 1 |
| Product Status | Obsolete |
| Series | JNC350R (350W) |
| Type | Isolated Module |
Documents
No documents are linked to this part yet.
