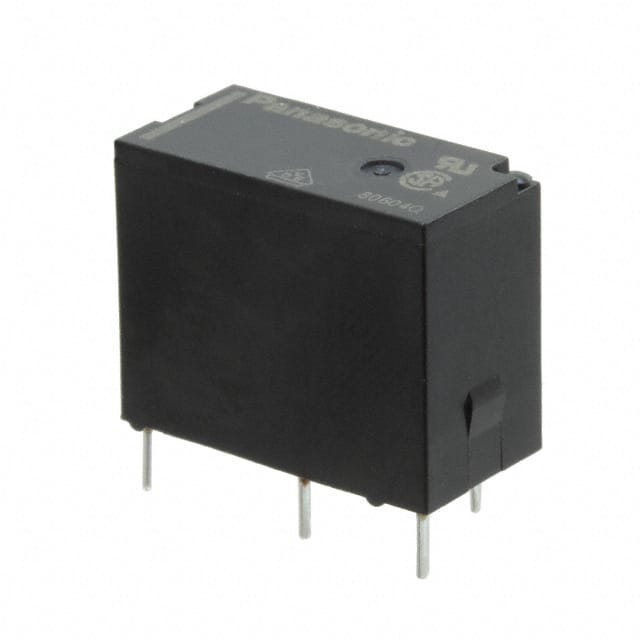

JQ1-48V-F
PanasonicJapan

JQ1-48V-F

ObsoletePower Relays, Over 2 Amps

RELAY GEN PURPOSE SPDT 5A 48V

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Coil voltage48 V
Contact formSPDT
Contact current5 AMax
Switching voltage250 VMax
Power
Coil Current8.3 mA
Coil Voltage48VDC
Contact Rating (Current)5 A
Must Operate Voltage36 VDC
Must Release Voltage2.4 VDC
Switching Voltage250VAC, 110VDC - Max
Environment and package
Mounting TypeThrough Hole
Operating Temperature-40°C~70°C
PackageBulk
Other
Base Product NumberJQ1-48
Coil InsulationClass E
Coil Resistance5.76 kOhms
Coil TypeNon Latching
Contact FormSPDT (1 Form C)
Contact MaterialSilver Tin Oxide (AgSnO)
Features-
MfrPanasonic Electric Works
Operate Time20 ms
Product StatusObsolete
Relay TypeGeneral Purpose
Release Time10 ms
Seal Rating-
SeriesJQ
Termination StylePC Pin
