PanasonicJapan

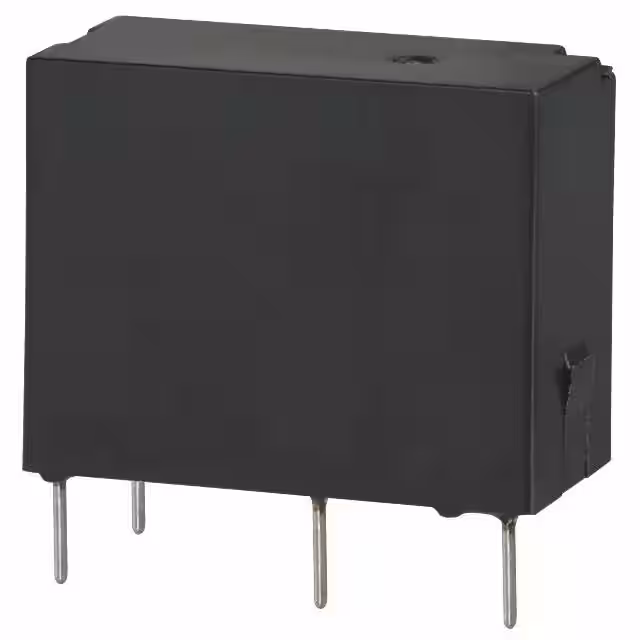

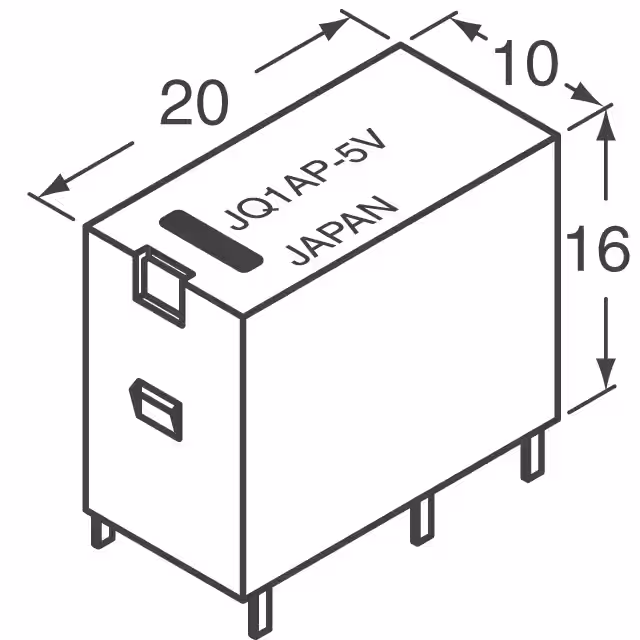

RELAY GEN PURPOSE SPDT 5A 5V
All alternatives
View full reportTechnical parameters
Key specs
Coil voltage5 V
Contact formSPDT
Contact current5 AMax
Switching voltage250 VMax
| Power | |
|---|---|
| Coil Current | 80 mA |
| Coil Voltage | 5VDC |
| Contact Rating (Current) | 5 A |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.25 VDC |
| Switching Voltage | 250VAC, 110VDC - Max |
| Environment and package | |

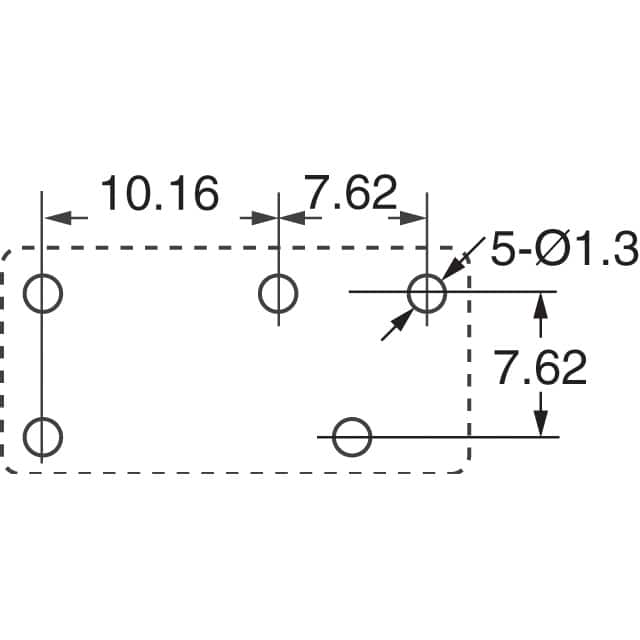

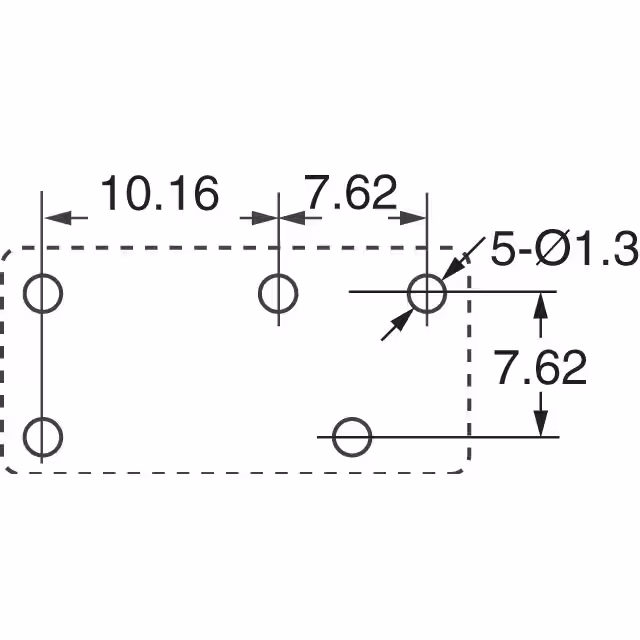

| Mounting Type | Through Hole |
| Operating Temperature | -40°C~70°C |
| Package | Bulk |
| Other | |
| Coil Insulation | Class E |
| Coil Resistance | 62.5 Ohms |
| Coil Type | Non Latching |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Alloy |
| Features | - |
| Mfr | Panasonic Electric Works |
| Operate Time | 5 ms |
| Product Status | Obsolete |
| Relay Type | General Purpose |
| Release Time | 2 ms |
| Seal Rating | - |
| Series | JQ |
| Termination Style | PC Pin |
