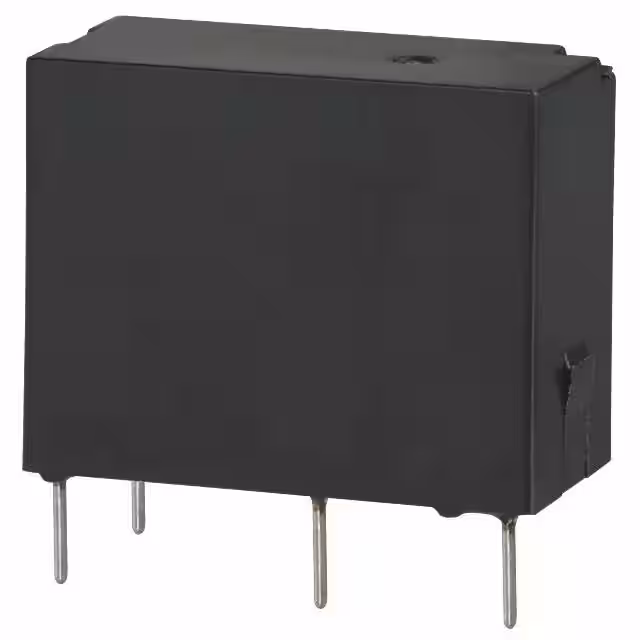

JQ1A-6V-F
PanasonicJapan

JQ1A-6V-F

ObsoletePower Relays, Over 2 Amps

RELAY GEN PURPOSE SPST 5A 6V

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Coil voltage6 V
Contact formSPST-NO
Contact current5 AMax
Switching voltage250 VMax
Power
Coil Current33.3 mA
Coil Voltage6VDC
Contact Rating (Current)5 A
Must Operate Voltage4.5 VDC
Must Release Voltage0.3 VDC
Switching Voltage250VAC, 110VDC - Max
Environment and package
Mounting TypeThrough Hole
Operating Temperature-40°C~70°C
PackageBulk
Other
Base Product NumberJQ1A
Coil InsulationClass E
Coil Resistance180 Ohms
Coil TypeNon Latching
Contact FormSPST-NO (1 Form A)
Contact MaterialSilver Tin Oxide (AgSnO)
Features-
MfrPanasonic Electric Works
Operate Time20 ms
Product StatusObsolete
Relay TypeGeneral Purpose
Release Time10 ms
Seal Rating-
SeriesJQ
Termination StylePC Pin
