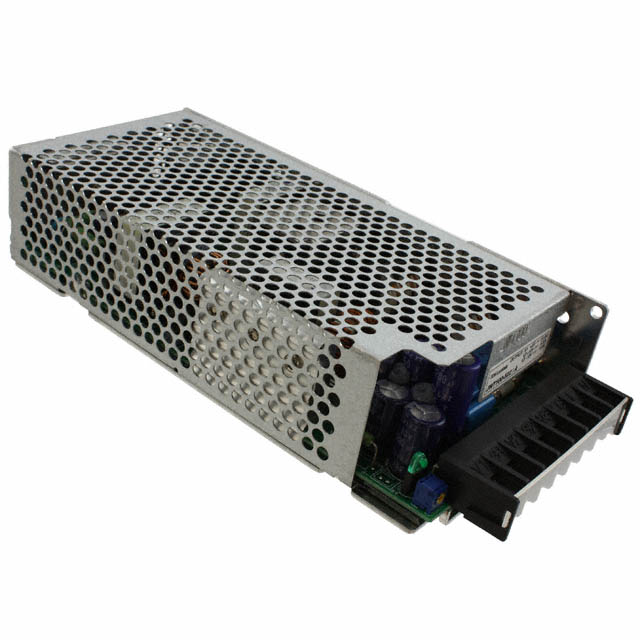

AC/DC CONVERTER 5V +/-12V 75W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage85 ~ 265 V
Output voltage5 V
Output current8 AMax
Power75 WMax
Outputs3
| Power | |
|---|---|
| Current - Output 1 | 8 A |
| Current - Output 2 | 4 A |
| Current - Output 3 | 500 mA |
| Power (Watts) | 75W |
| Voltage - Input | 85 ~ 265 VAC |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 12V |
| Voltage - Output 3 | -12V |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -10°C ~ 65°C (With Derating) |
| Package | Bulk |
| Size / Dimension | 7.40" L x 3.62" W x 1.65" H (188.0mm x 92.0mm x 42.0mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Efficiency | 72% |
| Features | Adjustable Output, DC Input Capable, PFC, Universal Input |
| Mfr | TDK-Lambda Americas Inc |
| Minimum Load Required | - |
| Number of Outputs | 3 |
| Product Status | Obsolete |
| Series | JWT (75W) |
| Type | Enclosed |
