onsemiUnited States
IC REG CTRLR BUCK 16DIP
All alternatives
View full reportTechnical parameters
Key specs
TopologyBuck
Outputs1
Input voltage7 ~ 42 V
Switching frequency1 ~ 300 kHz
| Power | |
|---|---|
| Voltage - Supply (Vcc/Vdd) | 7V ~ 42V |
| AC and DC characteristics | |
| Frequency - Switching | 1kHz ~ 300kHz |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Package | Tube |

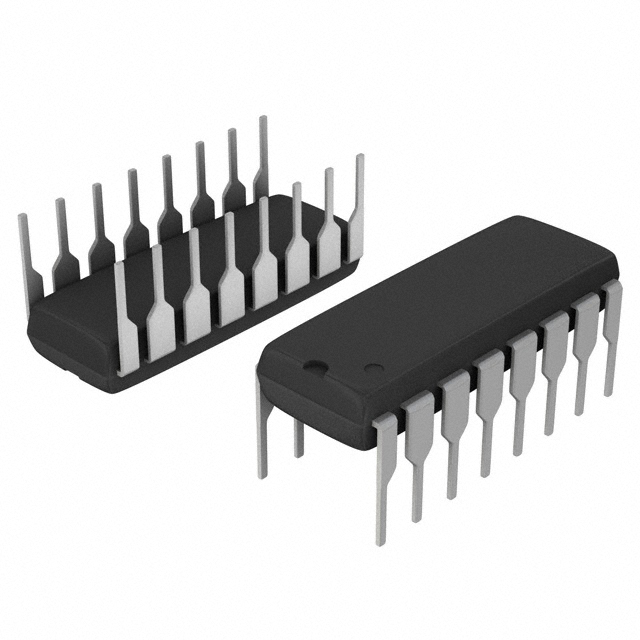

| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
| Other | |
| Base Product Number | KA7500 |
| Clock Sync | No |
| Control Features | Dead Time Control |
| Duty Cycle (Max) | 45% |
| Function | Step-Down |
| Mfr | onsemi |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Phases | 1 |
| Output Type | Transistor Driver |
| Product Status | Obsolete |
| Serial Interfaces | - |
| Series | - |
| Synchronous Rectifier | Yes |
| Topology | Buck |
