onsemiUnited States

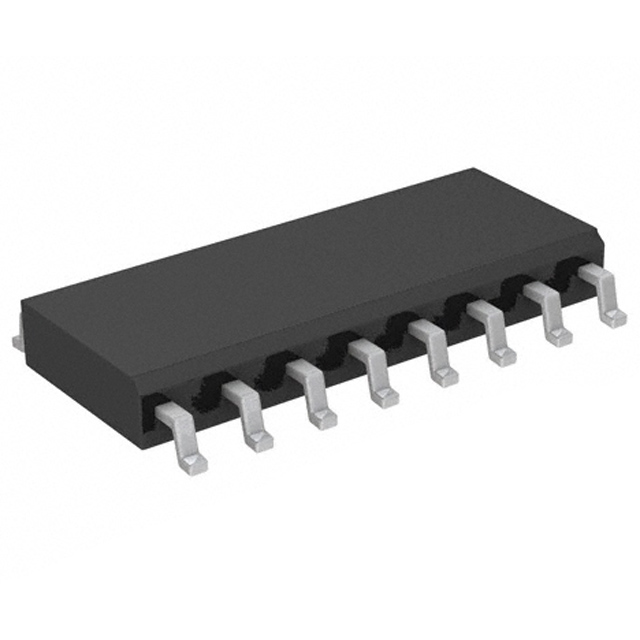

IC REG CTRLR BUCK 16SOP
All alternatives
View full reportTechnical parameters
Key specs
TopologyBuck
Outputs1
Input voltage7 ~ 40 V
Switching frequency1 ~ 200 kHz
| Power | |
|---|---|
| Voltage - Supply (Vcc/Vdd) | 7V ~ 40V |
| AC and DC characteristics | |
| Frequency - Switching | 1kHz ~ 200kHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Package | Tube |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOP |
| Other | |
| Base Product Number | KA7500 |
| Clock Sync | No |
| Control Features | Dead Time Control |
| Duty Cycle (Max) | 45% |
| Function | Step-Down |
| Mfr | onsemi |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Phases | 1 |
| Output Type | Transistor Driver |
| Product Status | Obsolete |
| Serial Interfaces | - |
| Series | - |
| Synchronous Rectifier | Yes |
| Topology | Buck |
Documents
No documents are linked to this part yet.
