Fairchild SemiconductorUnited States
TRANS PNP 45V 0.2A TO92-3
All alternatives
View full reportTechnical parameters
Key specs
TypePNP
Collector-emitter voltage45 V
Collector current200 mAMax
DC current gain12050mA
Power400 mWMax
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| Current - Collector (Ic) (Max) | 200 mA |
| Power - Max | 400 mW |
| Voltage - Collector Emitter Breakdown (Max) | 45 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 120 @ 50mA, 1V |
| Frequency - Transition | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | 150°C(TJ) |
| Package | Bulk |

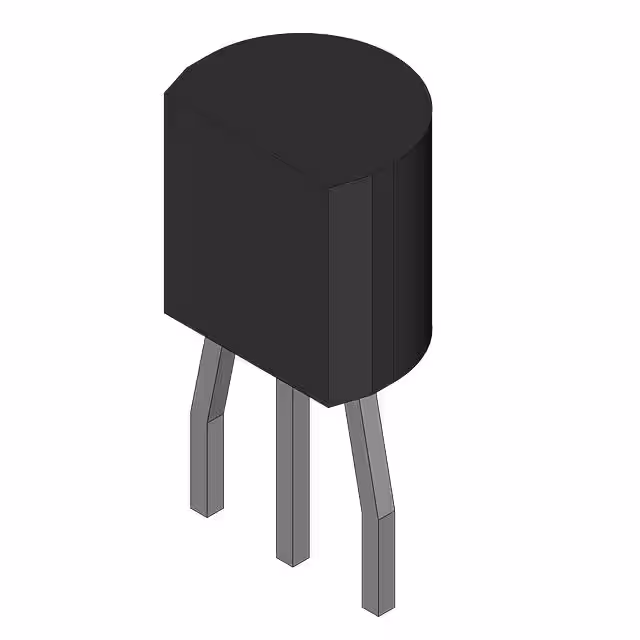

| Package / Case | TO-226-3, TO-92-3 (TO-226AA) Formed Leads |
| Supplier Device Package | TO-92-3 |
| Other | |
| Mfr | Fairchild Semiconductor |
| Product Status | Active |
| Series | - |
| Transistor Type | PNP |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 15mA, 150mA |
