GME(银河微电)China

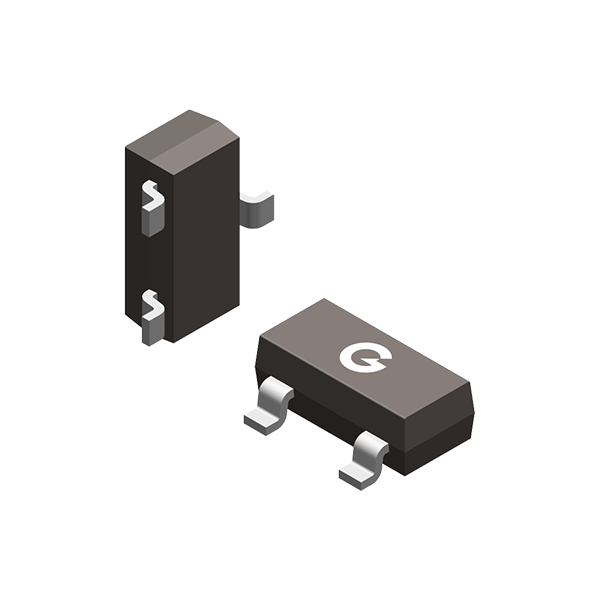

-50V,-0.15A,General Purpose PNP Bipolar Transistor
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| 基极电流 IB (mA) | -10 |
| 电流放大倍数 hFE max | 240 |
| 电流放大倍数 hFE min | 120 |
| 集电极-发射极击穿电压 VCEO (V) | -50 |
| 集电极电流 IC (A) | -0.15 |
| AC and DC characteristics | |
| 特征频率 fT min (MHz) | 80 |
| Environment and package | |
| REACH 合规 | YES |
| RoHS 合规 | YES |
| 封装 Package | SOT-23 |
| Other | |
| AEC-Q 车规认证 | NO |
| 出口管制编码 ECCN | EAR99 |
| 无卤 Halide-free | YES |
| 无铅 Pb-free | YES |
| 最低结温 Tj min (℃) | -55 |
| 最大耗散功率 PD (mW) | 0.15 |
| 最高结温 Tj max (℃) | 150 |
| 极性 Polarity | PNP |
| 生命周期 Marketing Status | Active |
| 饱和压降 VCE(sat) (V) | -0.3 |
Documents
DatasheetDatasheet · 392.4 KB · 2026-09-23EnvironmentalEnvironmental · 1.5 MB · 2026-09-23Package DrawingPackage Drawing · 941.5 KB · 2026-09-23EnvironmentalEnvironmental · 874.0 KB · 2026-09-23Package DrawingPackage Drawing · 432.5 KB · 2026-09-23Package DrawingPackage Drawing · 303.4 KB · 2026-09-23
Open document center
