STMicroelectronicsSwitzerland

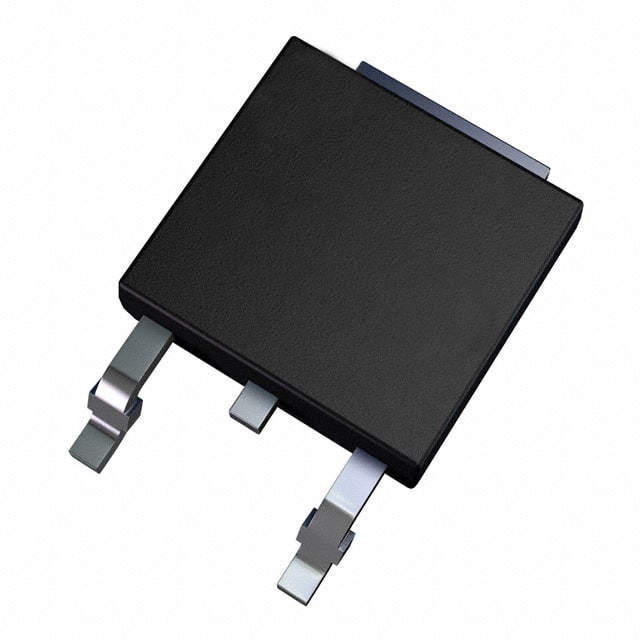

IC REG LINEAR 5V 500MA DPAK
All alternatives
View full reportTechnical parameters
Key specs
Output voltage5 V
Output current500 mAMax
Input voltage≤ 35 V
Quiescent current6 mATyp
| Power | |
|---|---|
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 6 mA |
| Voltage Dropout (Max) | - |
| Voltage - Input (Max) | 35V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| AC and DC characteristics | |
| PSRR | 62dB (120Hz) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C~125°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | DPAK |
| Other | |
| Base Product Number | L78M05 |
| Control Features | - |
| Mfr | STMicroelectronics |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Type | Fixed |
| Product Status | Active |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Series | - |
