Panduit CorpUnited States

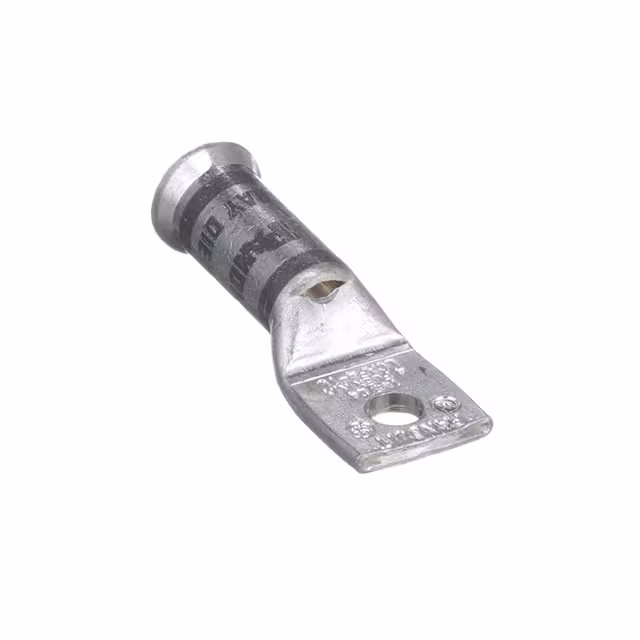

CONN TERM RECT TONG 4 AWG #10
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Mounting Type | Free Hanging (In-Line) |
| Package | Bulk |
| Stud/Tab Size | 10 Stud |
| Other | |
| Base Product Number | LCAF |
| Color | Gray |
| Contact Finish | Electro-Tin |
| Contact Material | Copper |
| Diameter - Barrel ID | 0.280" (7.11mm) |
| Diameter - Barrel OD | 0.460" (11.68mm) |
| Diameter - Ring ID | 0.200" (5.08mm) |
| Features | - |
| Insulation | Non-Insulated |
| Length - Overall | 1.540" (39.12mm) |
| Mfr | Panduit Corp |
| Product Status | Obsolete |
| Series | Pan-Lug® |
| Tab Thickness | 0.090" (2.29mm) |
| Terminal Style | Single Stud Hole |
| Terminal Type | Rectangular Tongue |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.550" (13.97mm) |
| Wire Gauge | 4 AWG |
