Panduit CorpUnited States

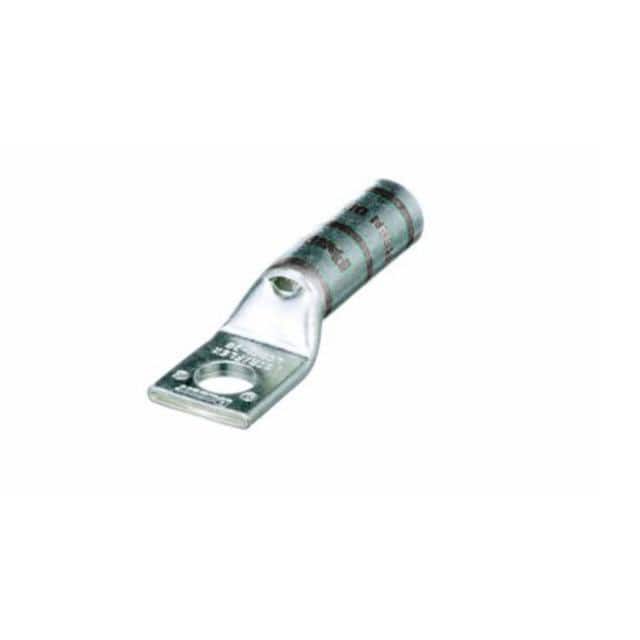

CONN TERM RECT TONG 2/0 AWG #1/4
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Mounting Type | Free Hanging (In-Line) |
| Package | Bulk |
| Stud/Tab Size | 1/4 Stud |
| Other | |
| Color | Black |
| Contact Finish | Electro-Tin |
| Contact Material | Copper |
| Diameter - Barrel ID | 0.510" (12.95mm) |
| Diameter - Barrel OD | 0.640" (16.26mm) |
| Diameter - Ring ID | 0.270" (6.86mm) |
| Features | - |
| Insulation | Non-Insulated |
| Length - Overall | 1.970" (50.04mm) |
| Mfr | Panduit Corp |
| Product Status | Obsolete |
| Series | Pan-Lug® |
| Tab Thickness | 0.130" (3.30mm) |
| Terminal Style | Single Stud Hole |
| Terminal Type | Rectangular Tongue |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.960" (24.38mm) |
| Wire Gauge | 2/0 AWG |
Documents
No documents are linked to this part yet.
