XP PowerUnited Kingdom

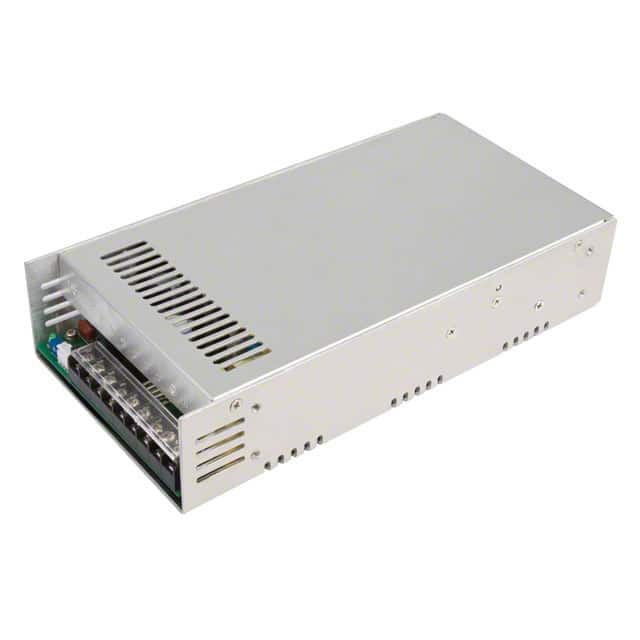

AC/DC CONVERTER 15V 500W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage85 ~ 264 V
Output voltage15 V
Output current34 AMax
Power500 WMax
Outputs1
| Power | |
|---|---|
| Current - Output 1 | 34 A |
| Power (Watts) | 500W |
| Voltage - Input | 85 ~ 264 VAC |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -10°C~70°C(WithDerating) |
| Package | Box |
| Size / Dimension | 9.84" L x 5.00" W x 2.08" H (250.0mm x 127.0mm x 53.0mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | - |
| Efficiency | 88% |
| Features | Adjustable Output, Remote On/Off, Remote Sense, Universal Input |
| Mfr | XP Power |
| Minimum Load Required | No |
| Number of Outputs | 1 |
| Product Status | Obsolete |
| Series | LCL (500W) |
| Type | Enclosed |
Documents
No documents are linked to this part yet.
