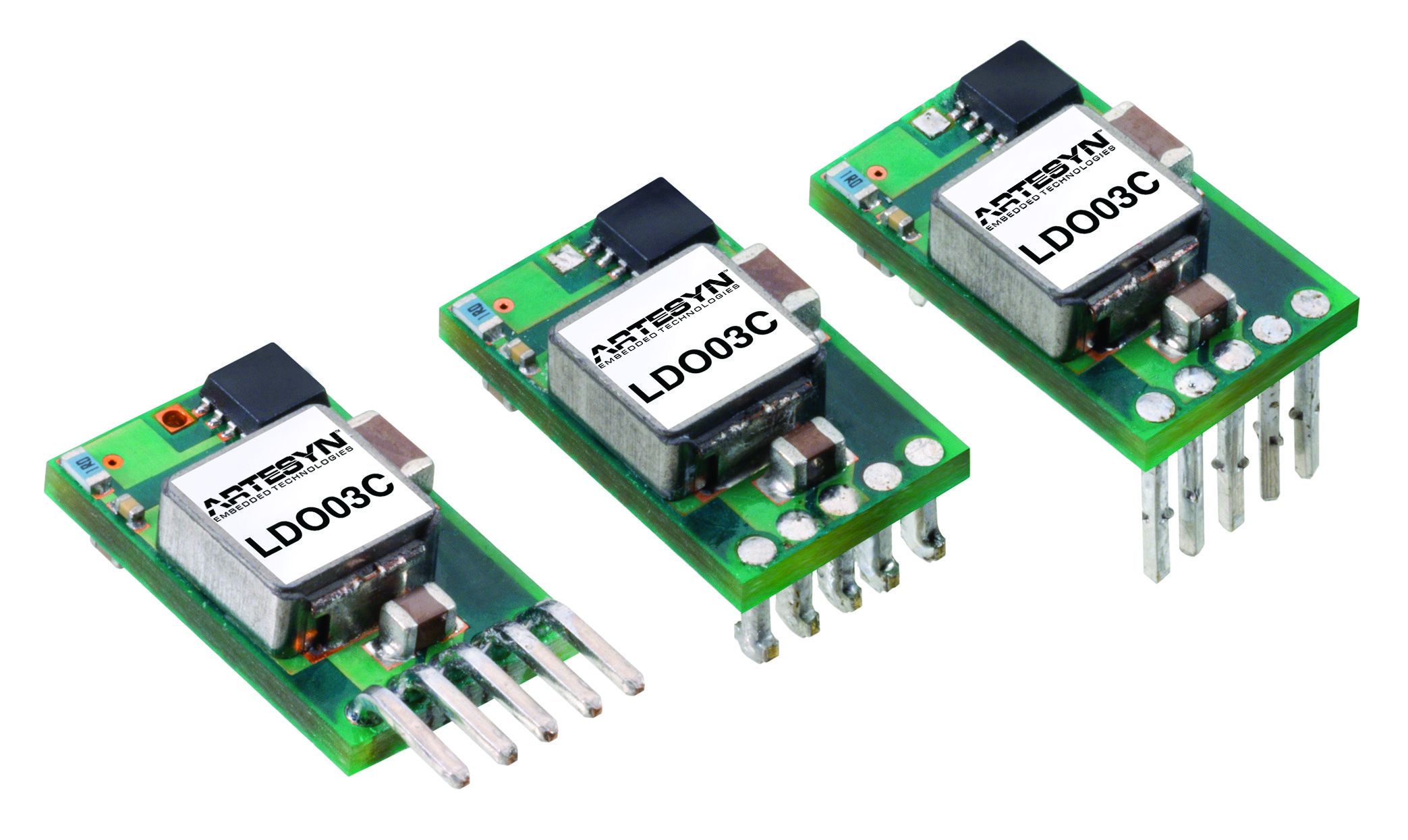

LDO03C
ActiveThe LDO03C series non-isolated DC-DC converter is designed for cost- and space-sensitive applications.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Maximum Input Voltage (V) | 13.8 |
| Maximum Output Current (A) | 3 |
| Maximum Output Power (W) | 15 |
| Minimum Input Voltage (V) | 3 |
| Minimum Output Current (A) | 3 |
| Minimum Output Power (W) | 15 |
| Output Power (W) | 15 |
| Output Voltage Range (V) | 0.59V to 5.1V |
| Environment and package | |
| Height (Inches) | 0.292 |
| Mounting Type | BMP; SMT &Through Hole |
| Other | |
| Length (Inches) | 0.61 |
| Warranty (Years) | 2 |
| Width (Inches) | 0.37 |
