Artesyn Embedded PowerUnited States

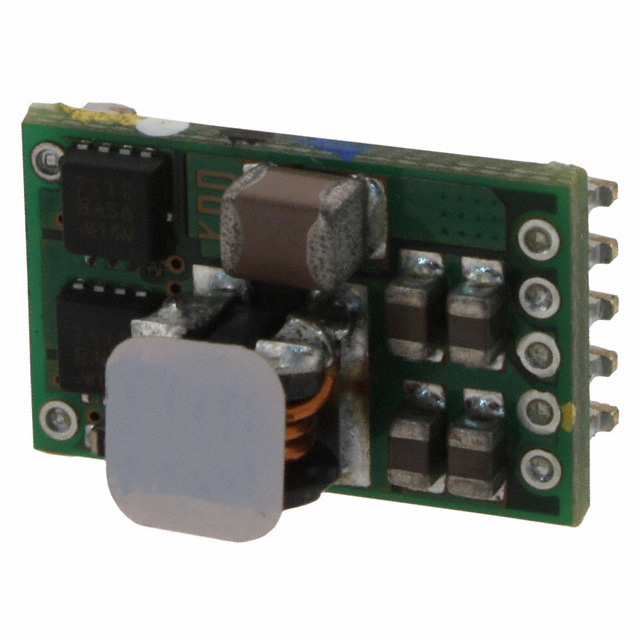

DC DC CONVERTER 0.59-5.1V 30W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage3 ~ 13.8 V
Output voltage590 mV ~ 5.1 V
Output current6 AMax
Power30 WMax
IsolationNon-isolated
| Power | |
|---|---|
| Current - Output (Max) | 6A |
| Power (Watts) | 30 W |
| Voltage - Input (Max) | 13.8V |
| Voltage - Input (Min) | 3V |
| Voltage - Output 1 | 0.59 ~ 5.1V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Package | Tray |
| Package / Case | Module |
| Size / Dimension | 0.65" L x 0.41" W x 0.44" H (16.5mm x 10.4mm x 11.2mm) |
| Other | |
| Applications | ITE (Commercial) |
| Base Product Number | LDO06C |
| Efficiency | 92% |
| Features | Remote On/Off, OVP, SCP |
| Mfr | Artesyn Embedded Power |
| Number of Outputs | 1 |
| Product Status | Active |
| Series | LDO06C (30W) |
| Type | Non-Isolated PoL Module |
