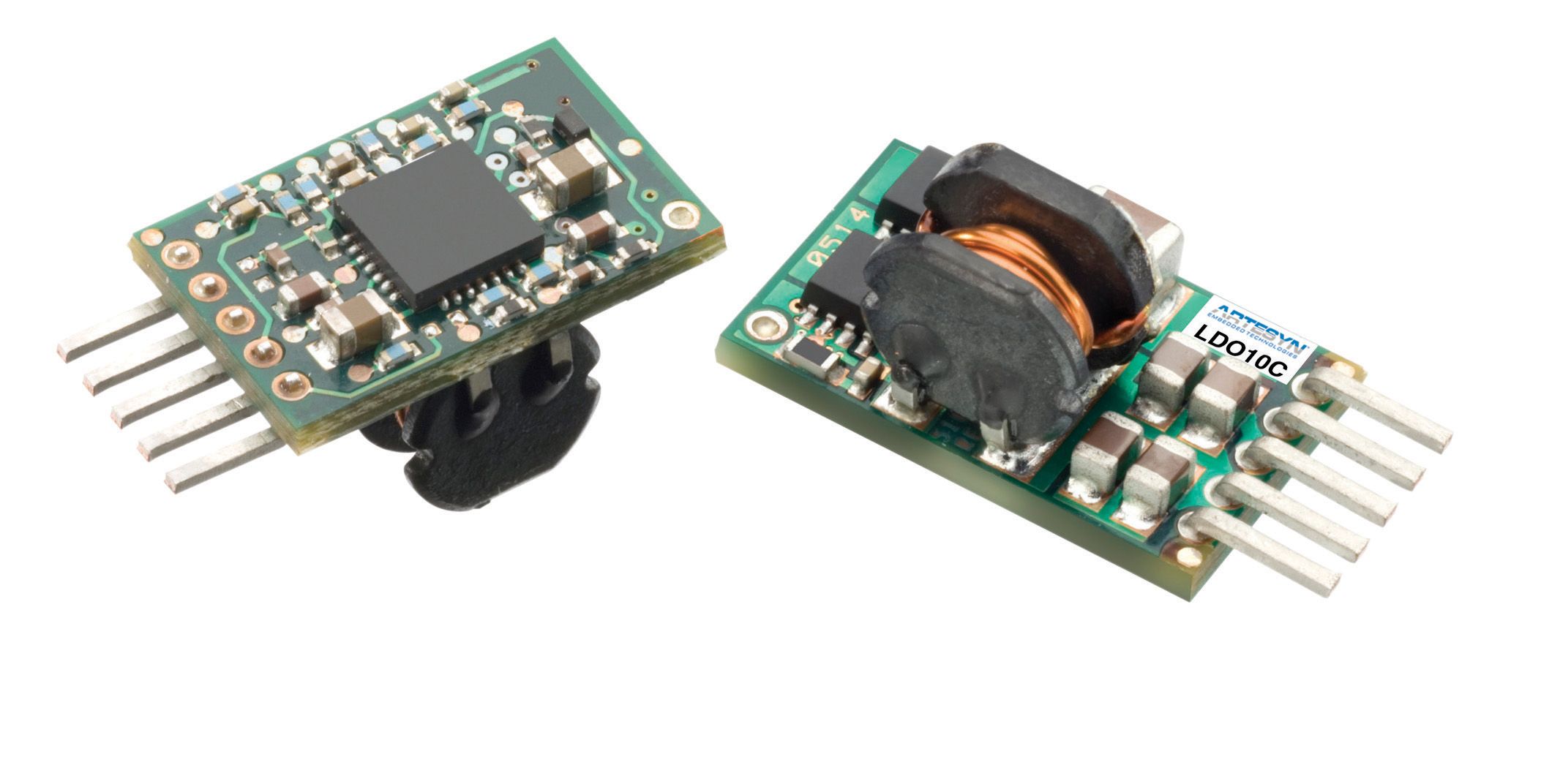

LDO10C
Advanced EnergyUnited States

LDO10C

Active

The LDO10C series non-isolated DC-DC converter is designed for cost- and space-sensitive applications.

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Power
Maximum Input Voltage (V)13.8
Maximum Output Current (A)10
Maximum Output Power (W)50
Minimum Input Voltage (V)3
Minimum Output Current (A)10
Minimum Output Power (W)50
Output Power (W)50
Output Voltage Range (V)0.59V to 5.1V
Environment and package
Height (Inches)0.52
Mounting TypeBMP; SMT &Through Hole
Other
Length (Inches)0.65
Warranty (Years)2
Width (Inches)0.41

Documents

DatasheetDatasheet · 723.5 KB · 2026-09-23DatasheetDatasheet · 591.2 KB · 2026-09-23DatasheetDatasheet · 578.2 KB · 2026-09-23DatasheetDatasheet · 549.9 KB · 2026-09-23Quality & ReliabilityQuality & Reliability · 1.4 MB · 2026-09-23OtherOther · 336.0 KB · 2026-09-23OtherOther · 154.5 KB · 2026-09-23Quality & ReliabilityQuality & Reliability · 60.5 KB · 2026-09-23EnvironmentalEnvironmental · 52.3 KB · 2026-09-23EnvironmentalEnvironmental · 29.1 KB · 2026-09-23EnvironmentalEnvironmental · 29.0 KB · 2026-09-23
Open document center
