STMicroelectronicsSwitzerland
IC REG LINEAR 3.3V 400MA 6DFN
All alternatives
View full reportTechnical parameters
Key specs
Output voltage3.3 V
Output current400 mAMax
Input voltage≤ 38 V
Dropout voltage270 mVMax · 400mA
Quiescent current90 µATyp
| Power | |
|---|---|
| Current - Output | 400mA |
| Current - Quiescent (Iq) | 90 µA |
| Current - Supply (Max) | 140 µA |
| Voltage Dropout (Max) | 0.27V @ 400mA |
| Voltage - Input (Max) | 38V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| AC and DC characteristics | |
| PSRR | 77dB ~ 42dB (100Hz ~ 10kHz) |
| Environment and package | |
| Mounting Type | Surface Mount, Wettable Flank |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |

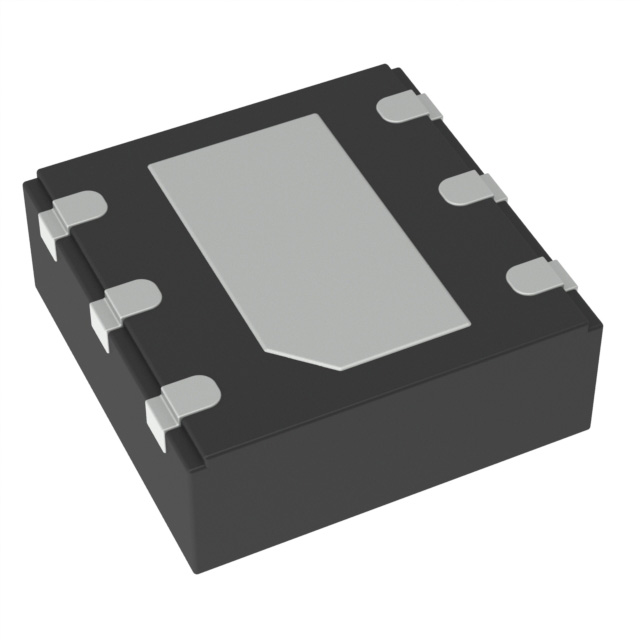

| Package / Case | 6-VDFN Exposed Pad |
| Supplier Device Package | 6-DFN (3x3) |
| Other | |
| Base Product Number | LDO40 |
| Control Features | Enable |
| Mfr | STMicroelectronics |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Type | Fixed |
| Product Status | Active |
| Protection Features | Current Limit, Thermal Shutdown |
| Series | Automotive, AEC-Q100 |
