Cosel USA, Inc.Japan

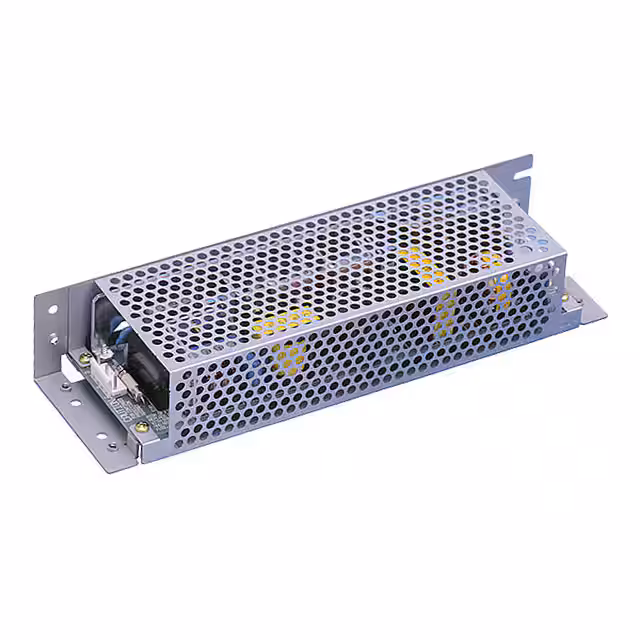

AC/DC CONVERTER 15V 100W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage85 ~ 264 V
Output voltage15 V
Output current6.7 AMax
Power100 WMax
Outputs1
| Power | |
|---|---|
| Current - Output 1 | 6.7 A |
| Power (Watts) | 100W |
| Voltage - Input | 85 ~ 264 VAC |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -20°C~70°C(WithDerating) |
| Package | Box |
| Size / Dimension | 8.74" L x 2.44" W x 1.26" H (222.0mm x 62.0mm x 32.0mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CE, cURus, TUV |
| Base Product Number | LEA100F |
| Efficiency | 82% |
| Features | Remote On/Off, Universal Input |
| Mfr | Cosel USA, Inc. |
| Minimum Load Required | - |
| Number of Outputs | 1 |
| Product Status | Obsolete |
| Series | LEA (100W) |
| Type | Open Frame |
