Laird-Signal Integrity ProductsUnited States

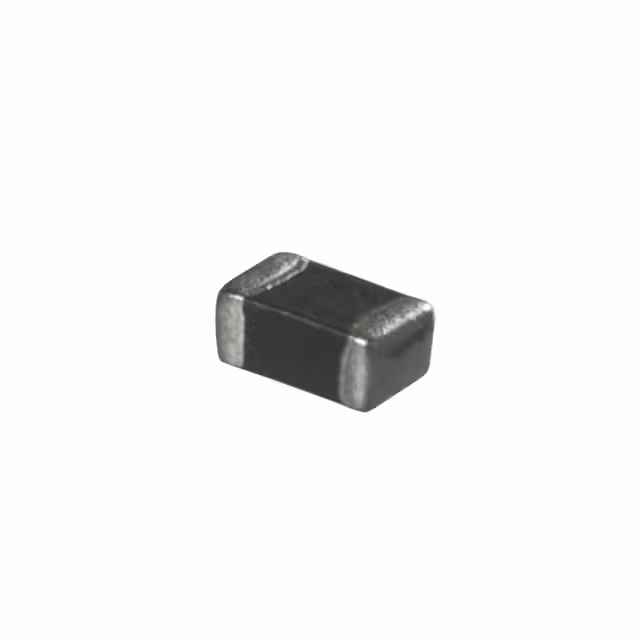

FERRITE BEAD 22 OHM 0402 1LN
All alternatives
View full reportTechnical parameters
Key specs
Impedance22 Ω100 MHz
Current rating300 mAMax
DC resistance200 mΩMax
| Power | |
|---|---|
| Current Rating (Max) | 300mA |
| AC and DC characteristics | |
| Impedance @ Frequency | 22 Ohms @ 100 MHz |
| Environment and package | |
| Height (Max) | 0.020" (0.50mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C |
| Package | Tape & Reel (TR) |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension | 0.040" L x 0.020" W (1.01mm x 0.50mm) |
| Other | |
| DC Resistance (DCR) (Max) | 200mOhm |
| Filter Type | Power, Signal Line |
| Mfr | Laird-Signal Integrity Products |
| Number of Lines | 1 |
| Product Status | Active |
| Ratings | - |
| Series | 0402 |
