onsemiUnited States

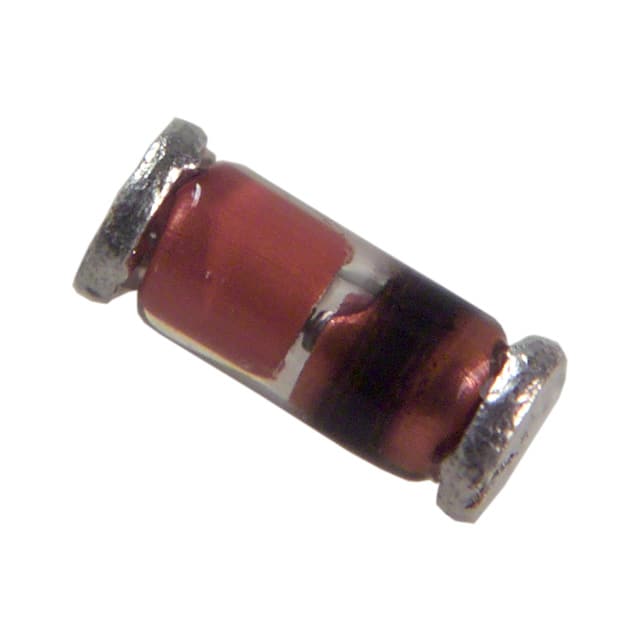

DIODE GEN PURP 100V 200MA SOD80
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage100 V
Average rectified current200 mA
Forward voltage1 VMax · 10 mA
TypeStandardSmall Signal =< 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 200mA |
| Current - Reverse Leakage @ Vr | 25 nA @ 20 V |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 10 mA |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | -55°C~175°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Supplier Device Package | SOD-80 |
| Other | |
| Base Product Number | LL414 |
| Capacitance @ Vr, F | 4pF @ 0V, 1MHz |
| Diode Type | Standard |
| Mfr | onsemi |
| Product Status | Active |
| Reverse Recovery Time (trr) | 4 ns |
| Series | - |
| Speed | Small Signal =< 200mA (Io), Any Speed |
