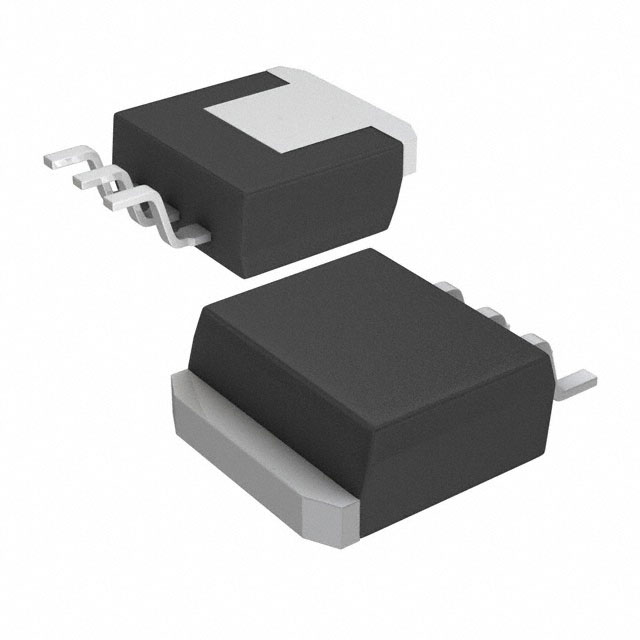

LM1084IS-12/NOPB
Texas InstrumentsUnited States

LM1084IS-12/NOPB

ObsoleteVoltage Regulators - LinearDDPAK/TO-263-3

IC REG LIN 12V 5A DDPAK/TO263-3

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Output voltage12 V
Output current5 AMax
Input voltage≤ 18 V
Dropout voltage1.5 VMax · 5A
Quiescent current10 mATyp
Power
Current - Output5A
Current - Quiescent (Iq)10 mA
Voltage Dropout (Max)1.5V @ 5A
Voltage - Input (Max)18V
Voltage - Output (Max)-
Voltage - Output (Min/Fixed)12V
AC and DC characteristics
PSRR60dB (120Hz)
Environment and package
Mounting TypeSurface Mount
Operating Temperature-40°C~125°C
PackageTube
Package / CaseTO-263-4, D²Pak (3 Leads + Tab), TO-263AA
Supplier Device PackageDDPAK/TO-263-3
Other
Base Product NumberLM1084
Control Features-
MfrTexas Instruments
Number of Regulators1
Output ConfigurationPositive
Output TypeFixed
Product StatusObsolete
Protection FeaturesOver Current, Over Temperature
Series-

Documents

No documents are linked to this part yet.
