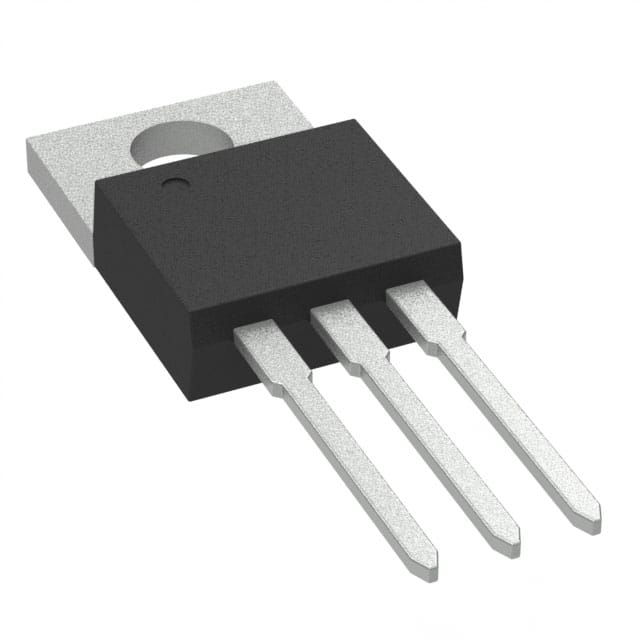

IC REG LINEAR POS ADJ 3A TO220-3
All alternatives
View full reportTechnical parameters
Key specs
Output voltage1.25 ~ 15 V
Output current3 AMax
Input voltage≤ 29 V
Dropout voltage1.5 VMax · 3A
Quiescent current10 mATyp
| Power | |
|---|---|
| Current - Output | 3A |
| Current - Quiescent (Iq) | 10 mA |
| Voltage Dropout (Max) | 1.5V @ 3A |
| Voltage - Input (Max) | 29V |
| Voltage - Output (Max) | 15V |
| Voltage - Output (Min/Fixed) | 1.25V |
| AC and DC characteristics | |
| PSRR | 75dB (120Hz) |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~125°C(TJ) |
| Package | Tube |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220-3 |
| Other | |
| Base Product Number | LM1085 |
| Control Features | - |
| Mfr | Texas Instruments |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Product Status | Not For New Designs |
| Protection Features | Over Current, Over Temperature |
| Series | - |
