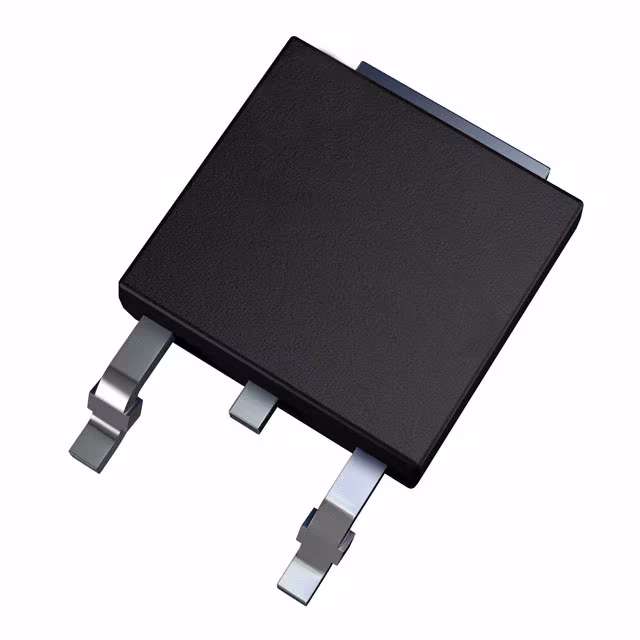

IC REG LINEAR 3.3V 800MA TO252-3
All alternatives
View full reportTechnical parameters
Key specs
Output voltage3.3 V
Output current800 mAMax
Input voltage≤ 15 V
Dropout voltage1.2 VMax · 800mA
Quiescent current5 mATyp
| Power | |
|---|---|
| Current - Output | 800mA |
| Current - Quiescent (Iq) | 5 mA |
| Current - Supply (Max) | 10 mA |
| Voltage Dropout (Max) | 1.2V @ 800mA |
| Voltage - Input (Max) | 15V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| AC and DC characteristics | |
| PSRR | 75dB (120Hz) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C |
| Package | Tube |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-252-3 |
| Other | |
| Base Product Number | LM1117 |
| Control Features | - |
| Mfr | Texas Instruments |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Type | Fixed |
| Product Status | Active |
| Protection Features | Over Current, Over Temperature |
| Series | LM1117-3.3 |
