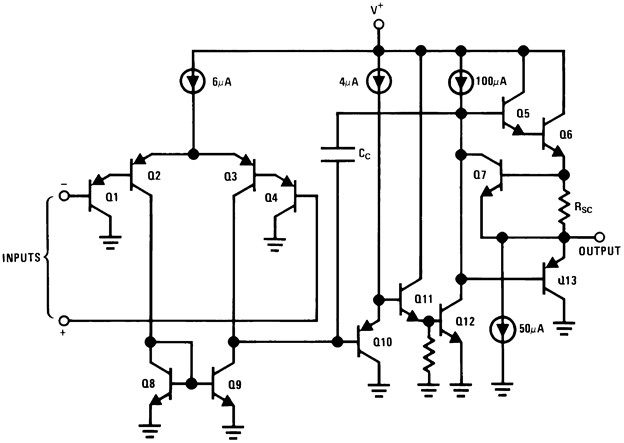

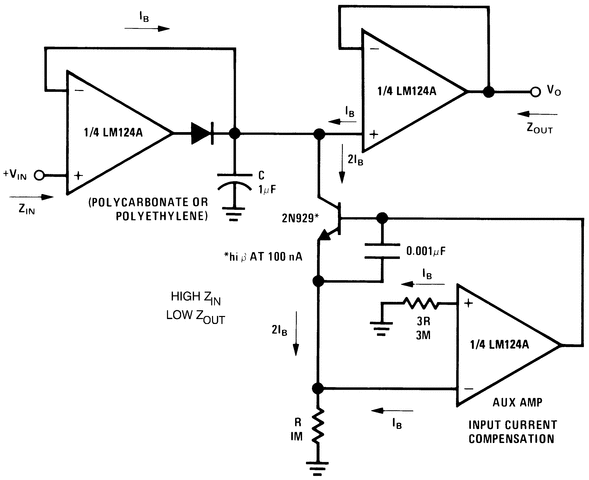

The LM124-N series consists of four independent, high-gain, internally frequency compensated operational amplifiers designed to operate from a single power supply over a wide range of voltages. Operation from split-power supplies is also possible and the low-power supply current drain is independent of the magnitude of the power supply voltage. Application areas include transducer amplifiers, DC gain blocks and all the conventional op amp circuits which now can be more easily implemented in single power supply systems. For example, the LM124-N series can directly operate off of the standard 5-V power supply voltage which is used in digital systems and easily provides the required interface electronics without requiring the additional ±15 V power supplies.
All alternatives
View full reportTechnical parameters

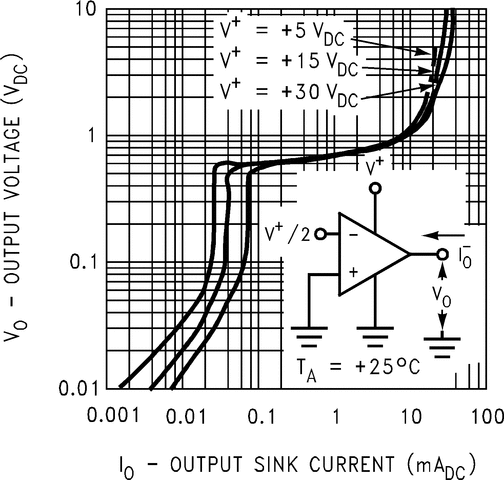

| Power | |
|---|---|
| Input bias current (max) (pA) | 150000 |
| Input common mode headroom (to negative supply) (typ) (V) | 0 |
| Input common mode headroom (to positive supply) (typ) (V) | -1.5 |
| Iq per channel (typ) (mA) | 0.175 |
| Number of channels | 4 |
| Output swing headroom (to negative supply) (typ) (V) | 0.005 |
| Output swing headroom (to positive supply) (typ) (V) | -2 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) | 32 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) | 3 |
| AC and DC characteristics | |
| CMRR (typ) (dB) | 80 |
| Offset drift (typ) (µV/°C) | 0 |
| Slew rate (typ) (V/µs) | 0.5 |
| Vos (offset voltage at 25°C) (max) (mV) | 5 |
| Environment and package | |
| Operating temperature range (°C) | -55 to 125 |
| Other | |
| Architecture | Bipolar |
| GBW (typ) (MHz) | 1.2 |
| Iout (typ) (A) | 0.04 |
| Rail-to-rail | In to V- |
| Rating | Military |
| Vn at 1 kHz (typ) (nV√Hz) | 35 |
