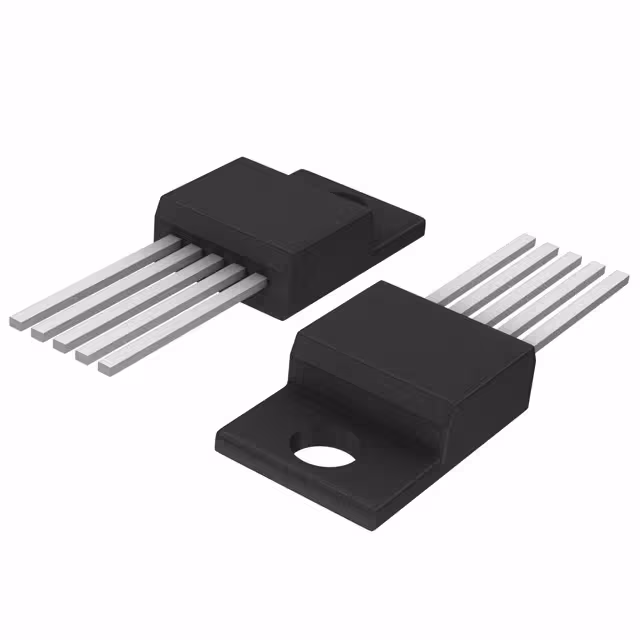

IC REG MULT CONFG ADJ 3A TO220-5
All alternatives
View full reportTechnical parameters
Key specs
Input voltage4.5 ~ 40 V
Output voltage1.23 ~ 37 V
Output current3 AMax
Switching frequency150 kHz
| Power | |
|---|---|
| Current - Output | 3A |
| Voltage - Input (Max) | 40V |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output (Max) | 37V |
| Voltage - Output (Min/Fixed) | 1.23V |
| AC and DC characteristics | |
| Frequency - Switching | 150kHz |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~125°C(TJ) |
| Package | Tube |
| Package / Case | TO-220-5 |
| Supplier Device Package | TO-220-5 |
| Other | |
| Base Product Number | LM259 |
| Function | Step-Up, Step-Down, Step-Up/Step-Down |
| Mfr | onsemi |
| Number of Outputs | 1 |
| Output Configuration | Positive or Negative |
| Output Type | Adjustable |
| Product Status | Obsolete |
| Series | - |
| Synchronous Rectifier | No |
| Topology | Buck, Boost, Buck-Boost |
