Technical parameters

Key specs

Supply voltage3 ~ 26 V
Gain bandwidth product1 MHzTyp
Input offset voltage3 mVTyp · VCC=5V to MAX,VIC=VICRmin,VO=1.4V)
Quiescent current700 µATyp · VO=2.5V
Channels4

Datasheet-verified parameters

23 items
ParameterValue and test conditionsSource
Supply voltage3 V to 26 V
Operating free air temperature-40 °C to 125 °C
PackageN (PDIP, 14)
Channels4
Input offset voltageTyp 3 mV, Max 7 mV (at 25°C, VCC=5V to MAX, VIC=VICRmin, VO=1.4V)
Supply current (four amplifiers)Typ 0.7 mA, Max 1.2 mA (Full range, VO=2.5V, no load)
Supply voltage (Absolute Maximum)Max 26 V
Differential input voltage (Absolute Maximum)Max ±26 V
Input voltage (Absolute Maximum)Min -0.3 V, Max 26 V
Operating virtual junction temperature (Absolute Maximum)Max 150 °C
Storage temperature-65 °C to 150 °C
Common-mode voltage0 V to VCC-2 V
Input bias currentTyp -20 nA, Max -250 nA (at 25°C, VO=1.4V)
Input offset currentTyp 2 nA, Max 50 nA (at 25°C, VO=1.4V)
Large-signal differential voltage amplificationMin 50 V/mV, Typ 100 V/mV (at 25°C, VCC+=15V, VO=1V to 11V, RL≥2kΩ)
Common-mode rejection ratioMin 70 dB, Typ 80 dB (at 25°C, VIC=VICRmin)
Supply-voltage rejection ratioMin 65 dB, Typ 100 dB (at 25°C)
Output currentSource: Typ -30 mA, Max -60 mA; Sink: Typ 20 mA, Max 10 mA (at 25°C, VCC=15V)
Short-circuit output currentTyp ±40 mA, Max ±60 mA (at 25°C, VCC=5V)
High-level output voltageVCC-1.5 V (at 25°C, RL=2kΩ)
Low-level output voltageTyp 5 mV, Max 20 mV (Full range, RL≤10kΩ)
Crosstalk attenuationTyp 120 dB (at 25°C, f=1kHz to 20kHz)
Junction-to-ambient thermal resistance83.5 °C/W (N PDIP package)
All parameters (20)ExpandCollapse
Power
Current - Input Bias45 nA
Current - Output / Channel40 mA
Current - Supply1.5mA
Voltage - Supply Span (Max)32 V
Voltage - Supply Span (Min)3 V
AC and DC characteristics
Gain Bandwidth Product1 MHz
Slew Rate-
Voltage - Input Offset2 mV
Environment and package
Mounting TypeThrough Hole
Operating Temperature-40°C~85°C(TJ)
PackageTube
Package / Case14-DIP (0.300", 7.62mm)
Supplier Device Package14-PDIP
Other
Amplifier TypeGeneral Purpose
Base Product NumberLM2902
MfrTexas Instruments
Number of Circuits4
Output Type-
Product StatusActive
SeriesLinCMOS™

Pinout and package

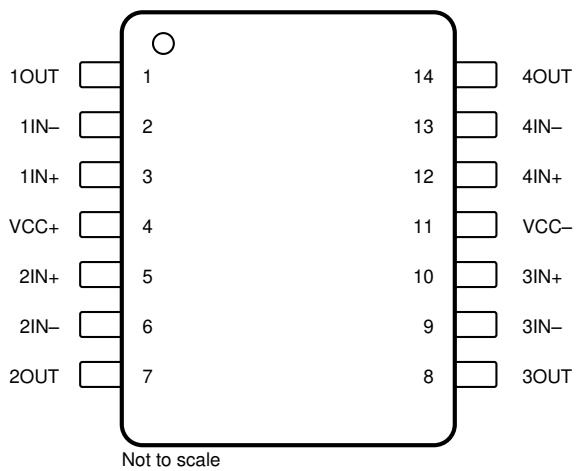

Figure 5-1. D, DB, J, N, NS, P…
Figure 5-1. D, DB, J, N, NS, P…
Package: N (PDIP, 14)
PinNameFunctionSource
11OUTOutput
21IN-Negative input
31IN+Positive input
4VCC+Positive (highest) supply
52IN+Positive input
62IN-Negative input
72OUTOutput
83OUTOutput
93IN-Negative input
103IN+Positive input
11VCC-Negative (lowest) supply or ground
124IN+Positive input
134IN-Negative input
144OUTOutput
